Object Detection Wiring Schematics

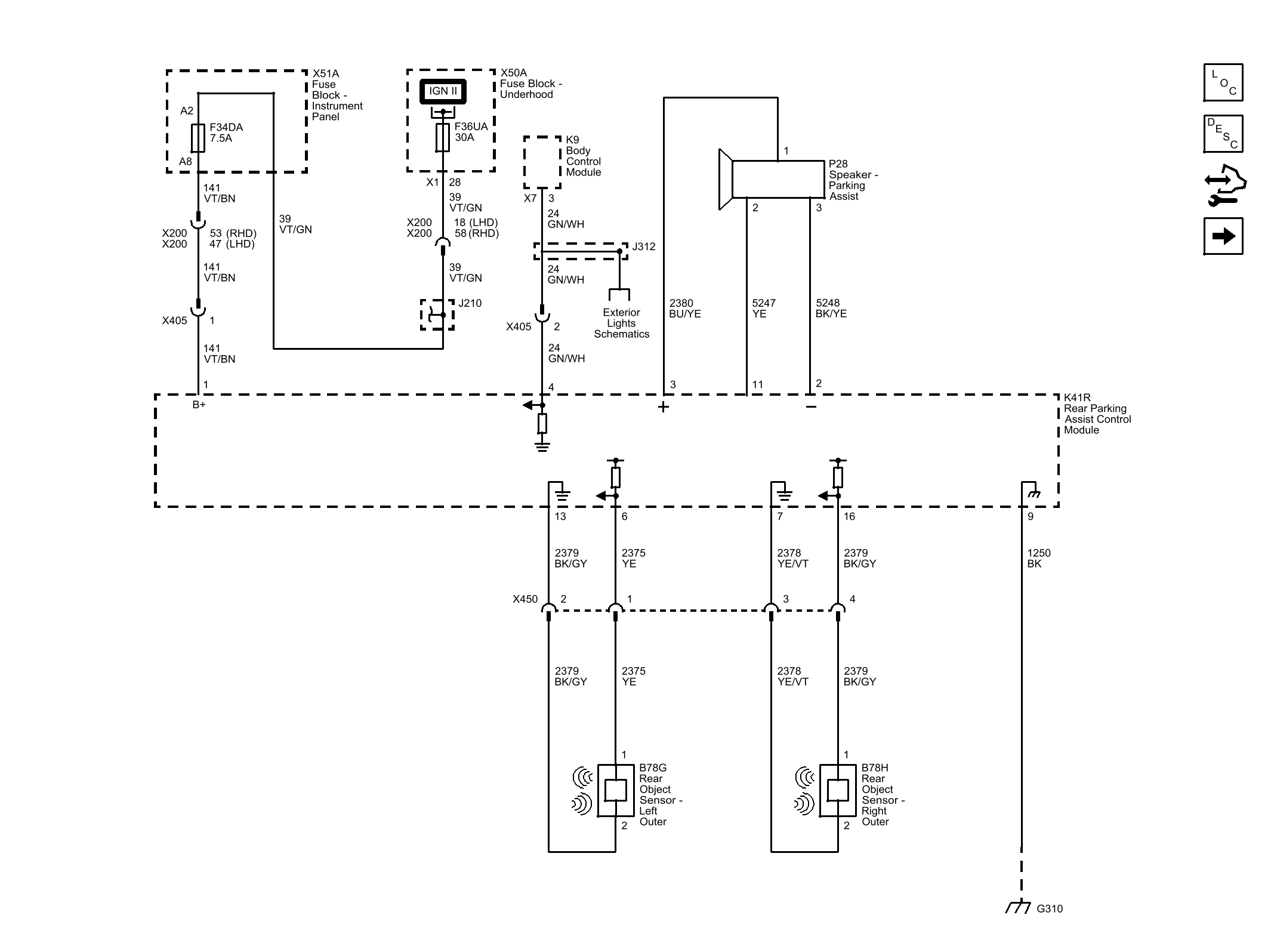

Fig 1: Object Detection Wiring Schematics
GM3219720Courtesy of GENERAL MOTORS COMPANY
