Hybrid Powertrain Control Module 2 Replacement

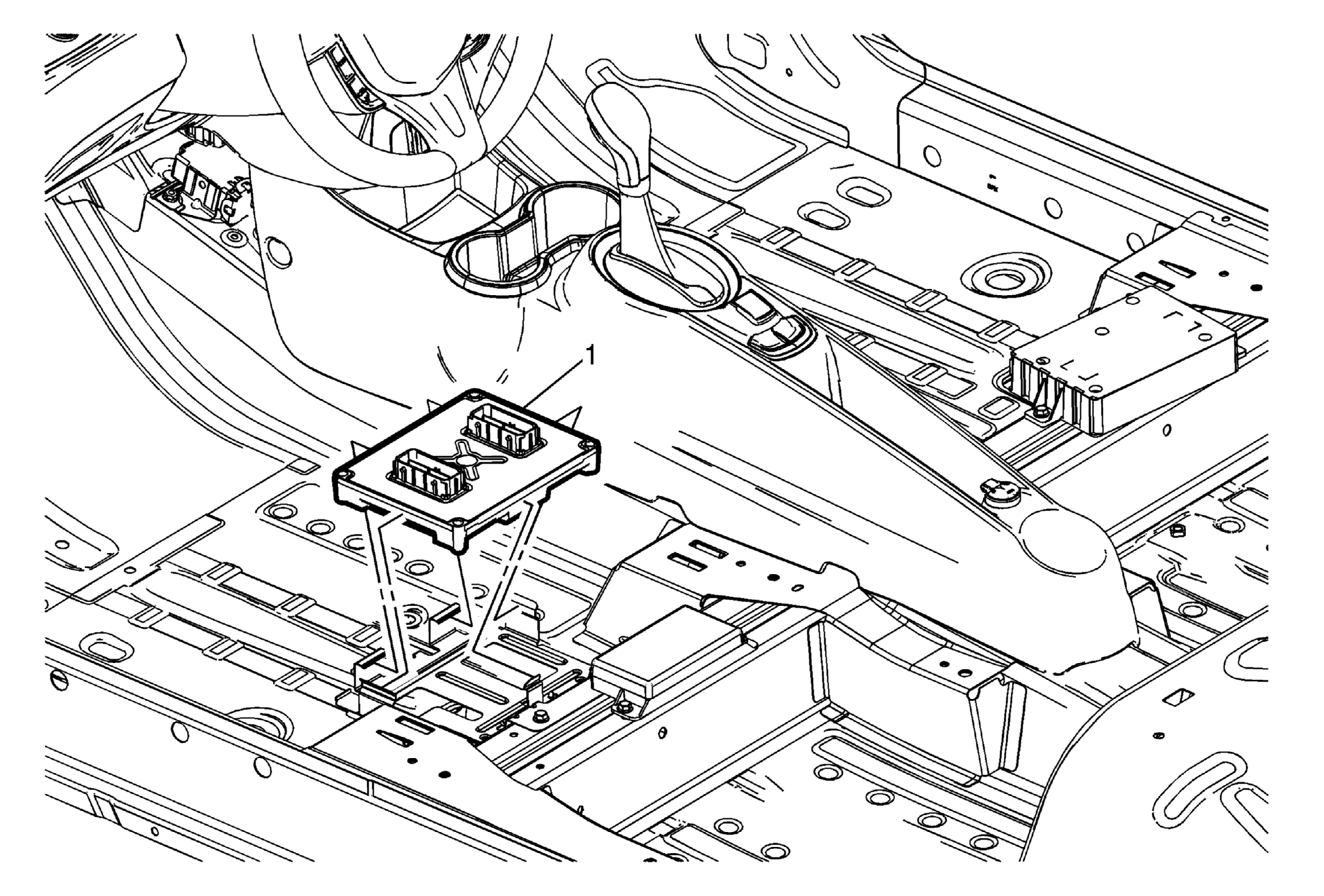

Fig 1: Hybrid Powertrain Control Module 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures WARNING: Refer to Battery Disconnect Warning . Disconnect the battery negative cable. Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Hybrid Powertrain Control Module 2 Procedure Disconnect the electrical connectors. Release tabs on bracket to remove module.

Callout

Component Name

Preliminary Procedures

WARNING:

Disconnect the battery negative cable.
Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .

Hybrid Powertrain Control Module 2

Procedure
