Rearview Camera (UVC) Wiring Schematics

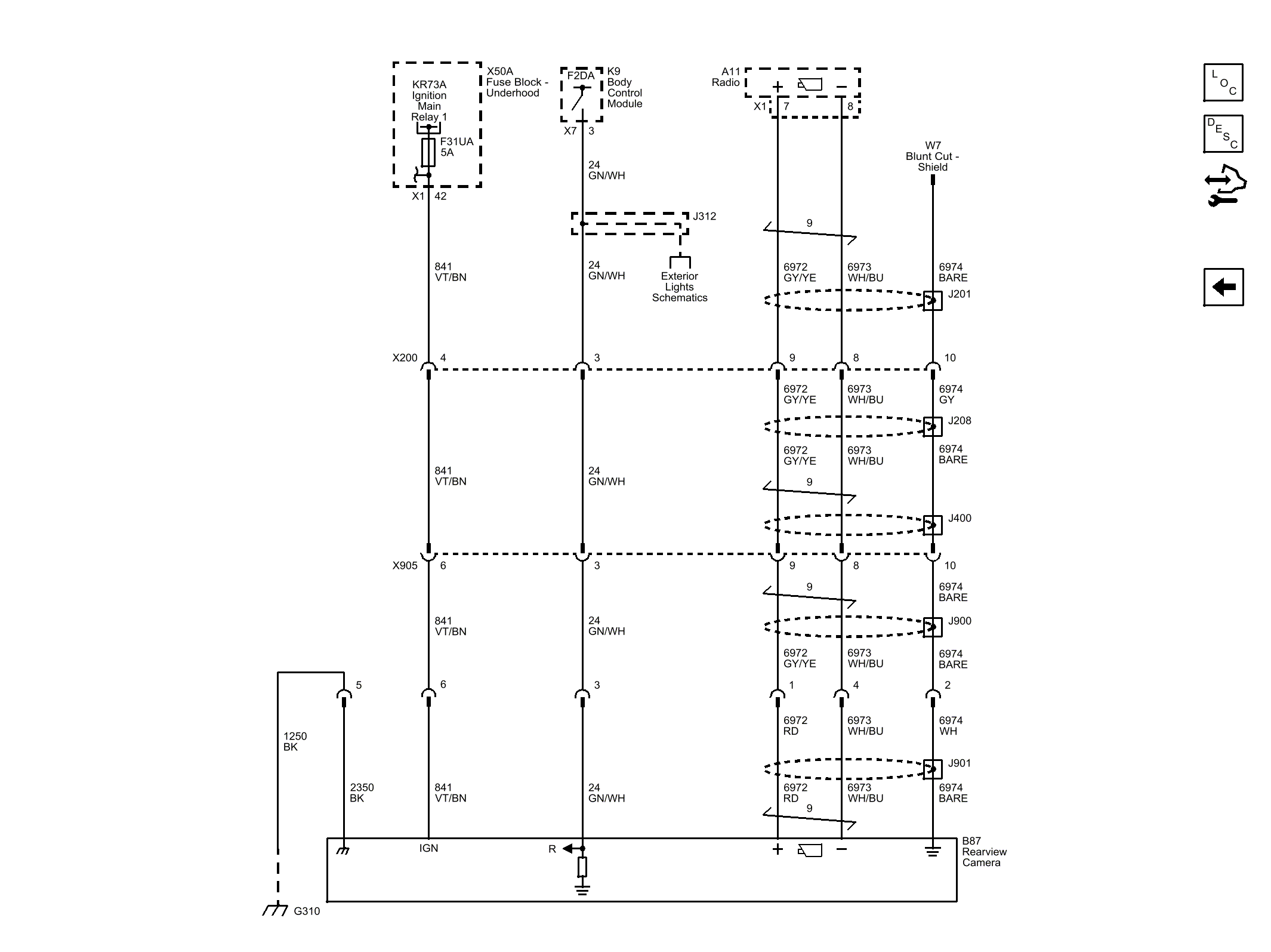

Fig 1: Rearview Camera (UVC) Wiring Schematics
GM3397778Courtesy of GENERAL MOTORS COMPANY
