Installation Procedure

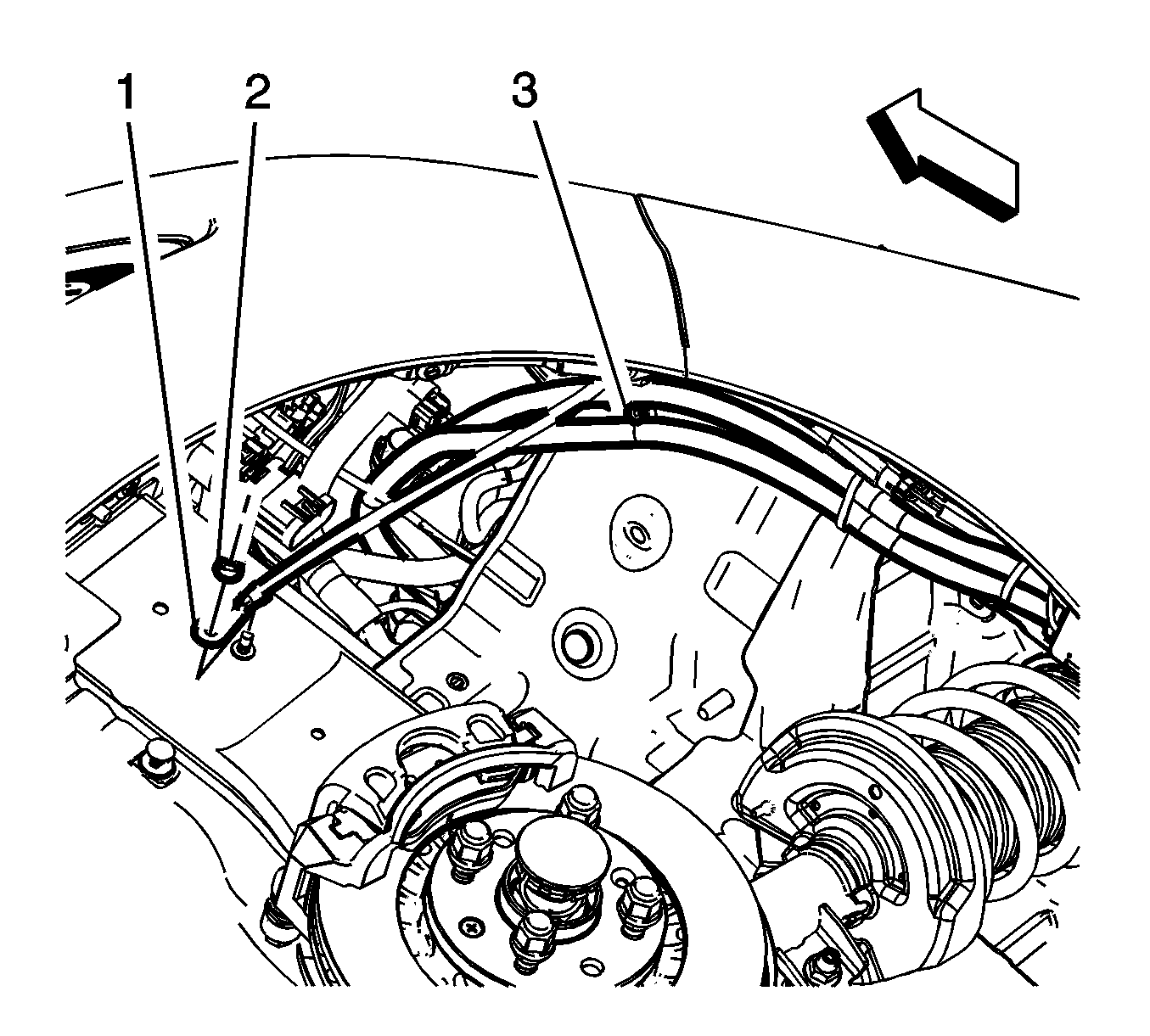

    Fig 1: Harness Retainer And Ground Fastener
    GM3242916Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the drive motor battery charger receptacle ground harness terminal (1), to the frame rail stud. Tighten the fastener (2) to 9 (80 lb in).
  2. Connect the drive motor battery charger receptacle harness retainer (3), to the wheel well panel.

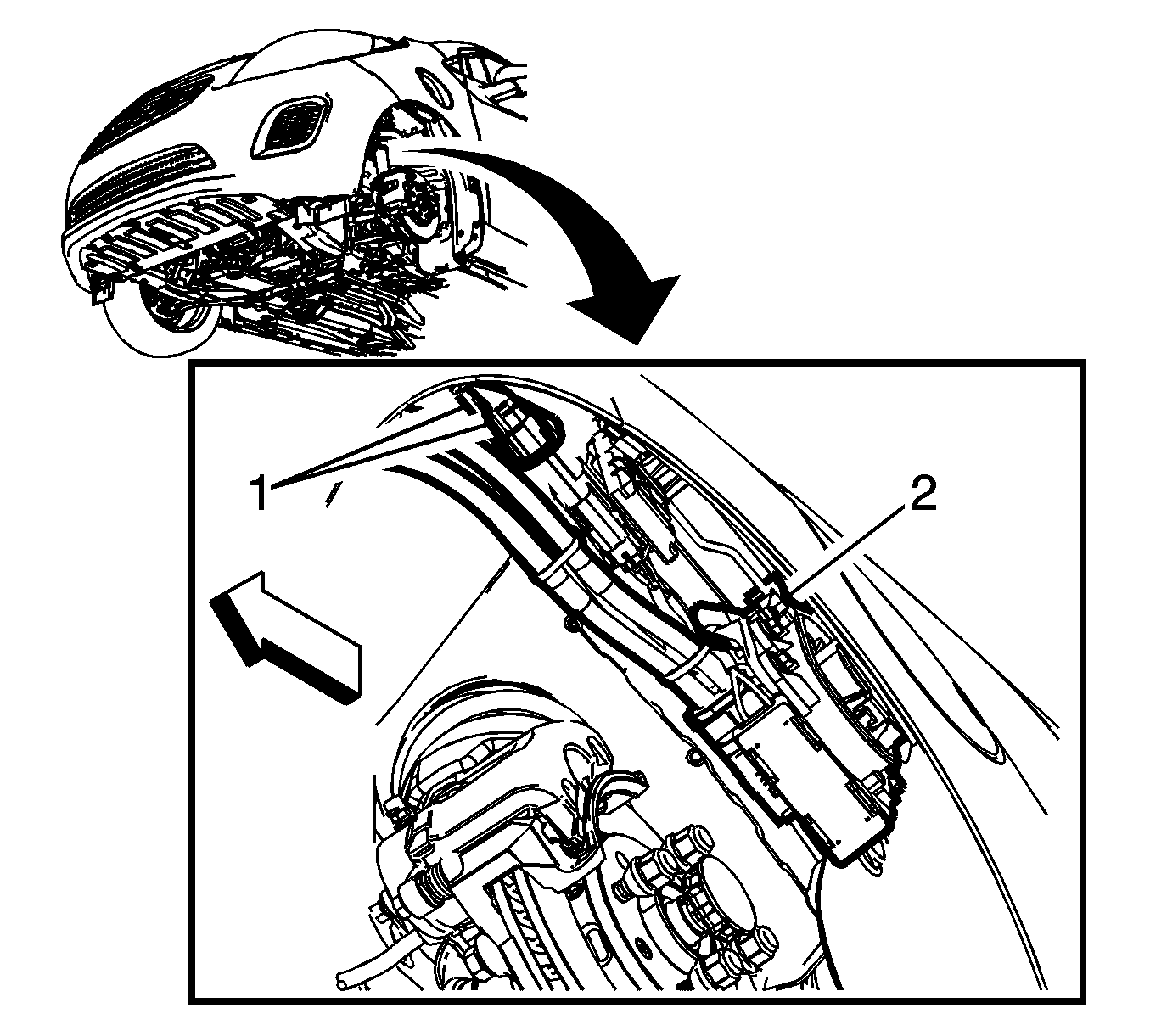

    3. Fig 2: Drive Motor Battery Charger Receptacle
    GM3242914Courtesy of GENERAL MOTORS COMPANY
  3. Slide the drive motor battery charger receptacle (2) into position and connect the harness connectors (1).

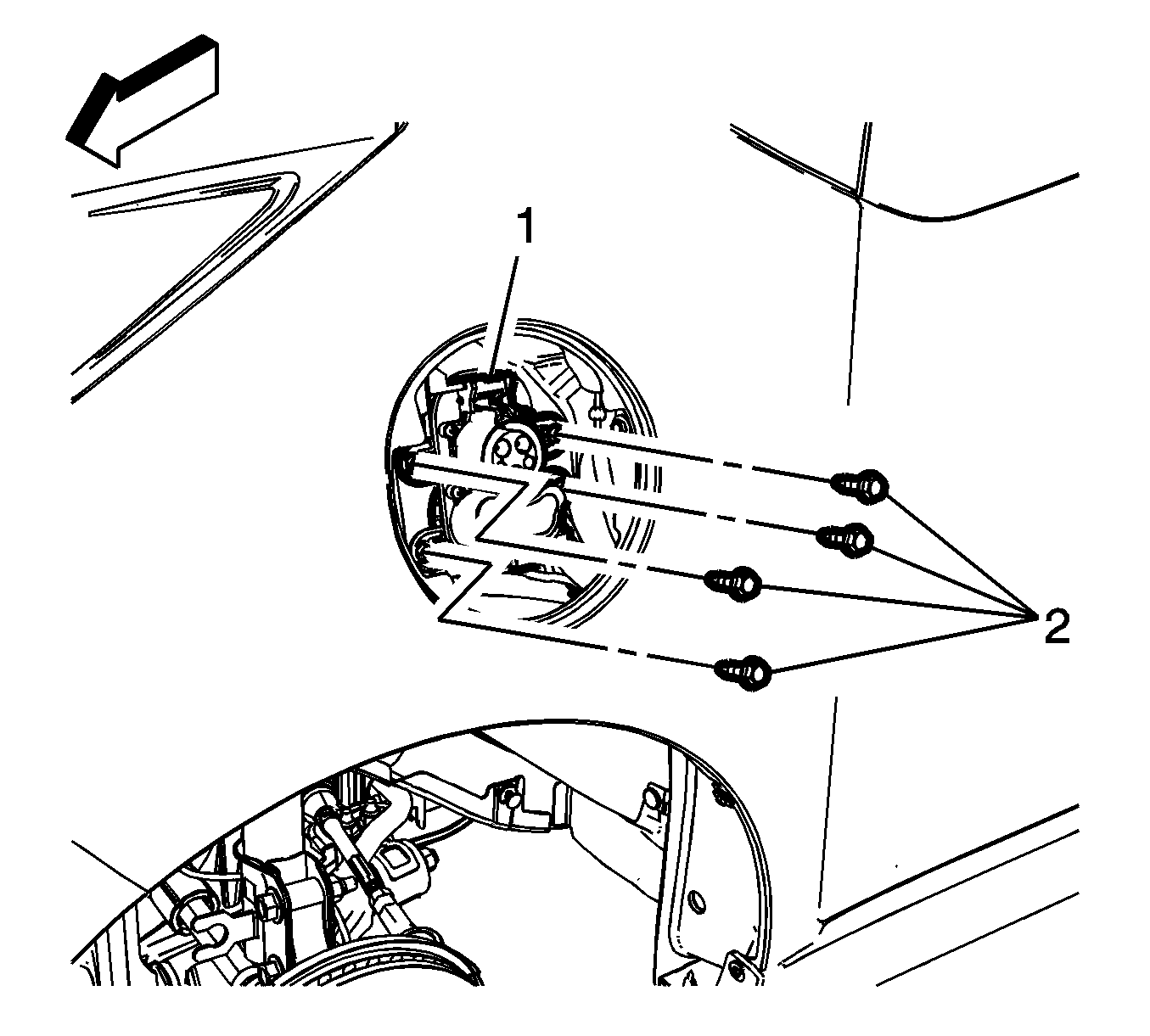

    4. Fig 3: Drive Motor Battery Charger Receptacle Fasteners
    GM3242933Courtesy of GENERAL MOTORS COMPANY
  4. Install the drive motor battery charger receptacle retainer fasteners (2 and tighten to 9 (80 lb in).
  5. Install the charge port housing. Refer to Charge Port Housing Replacement .
  6. Install the high voltage disconnect circuit cover. Refer to High Voltage Disconnect Circuit Connector Cover Replacement .
  7. Enable the high voltage system. Refer to High Voltage Enabling .
