2014
›
Spark EV
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Plug-In Charging
›
Schematic Wiring Diagrams
›
Plug-In Charging Wiring Schematics
›
Battery State of Charge Wiring Schematics
Battery State of Charge Wiring Schematics

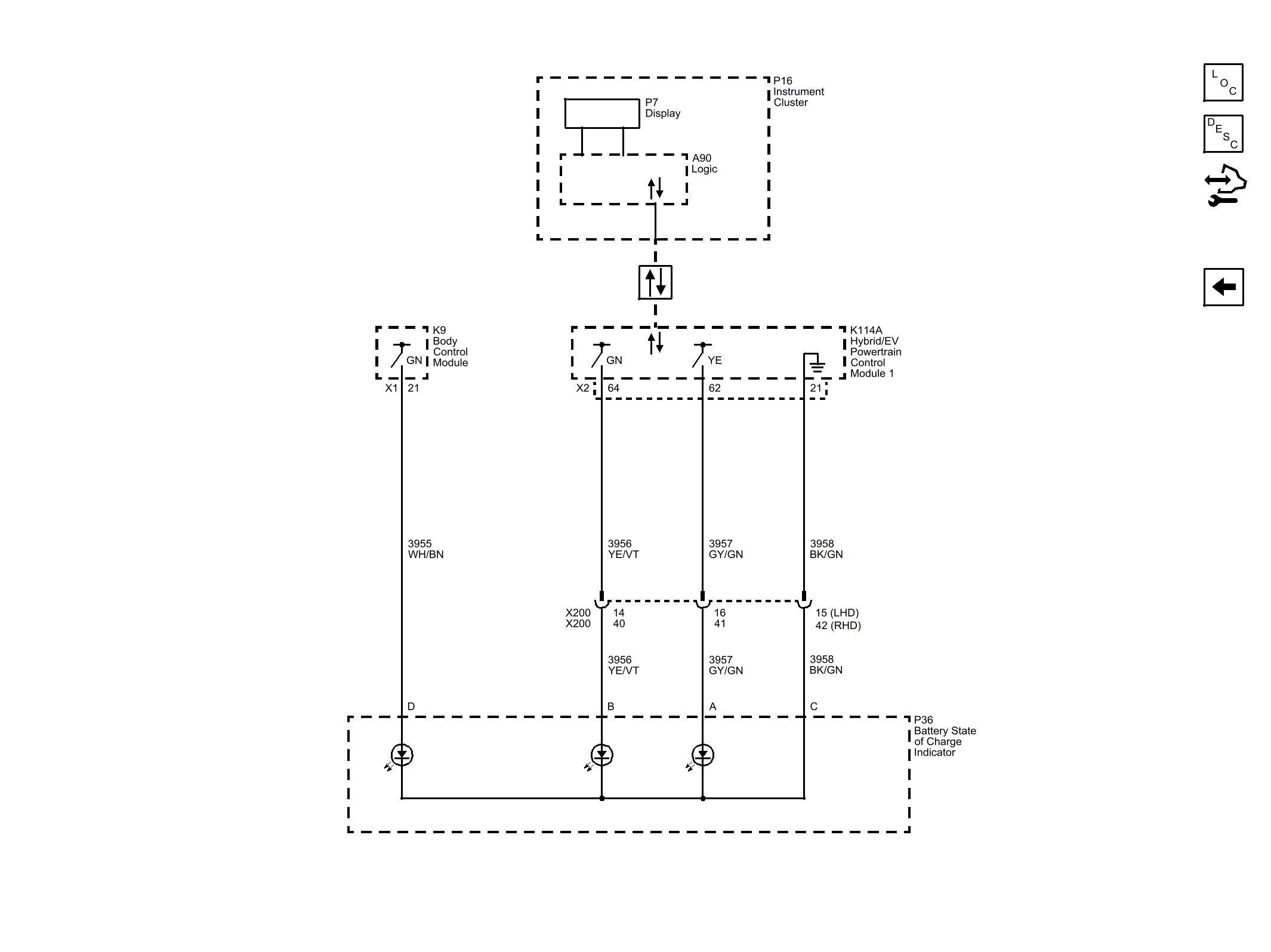

Fig 1: Battery State of Charge Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
