Installation Procedure

    Fig 1: Lower Control Arm
    GM2327512Courtesy of GENERAL MOTORS COMPANY
  1. Position the lower control arm (1) on the vehicle.

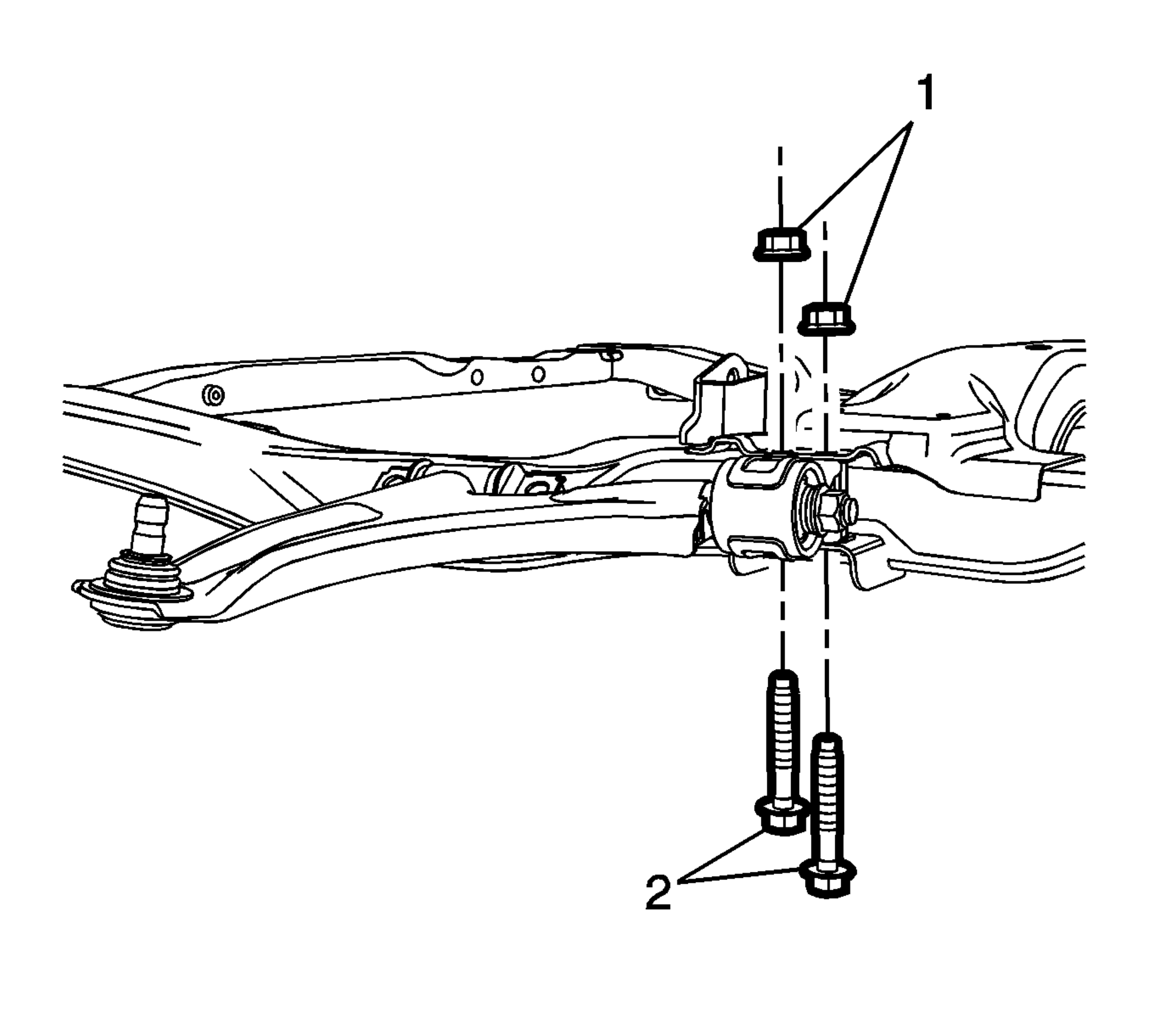

    2. Fig 2: Front Lower Control Arm Rear Nuts
    GM3136954Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front lower control arm rear bolts (2) and nuts (1) and tighten the bolts to 110 N.m (81 lb ft).
    3. Fig 3: Cradle Bolts And Front Lower Control Bushing Brackets
    GM2327518Courtesy of GENERAL MOTORS COMPANY
  3. Install the front lower control arm front bushing brackets (2) and the front lower control arm front bolts (1) and tighten the bolts to 110 N.m (81 lb ft).
    4. Fig 4: Steering Knuckle Retaining Bolt
    GM2327521Courtesy of GENERAL MOTORS COMPANY
  4. Connect the lower control arm ball joint to the steering knuckle.
  5. Install the steering knuckle bolt (1) and tighten to 63 N.m (46 lb ft).
  6. Install the front, middle and rear pieces of the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement (Front) , Front Compartment Splash Shield Replacement (Middle) , Front Compartment Splash Shield Replacement (Rear) .
  7. Install the front compartment air deflector. Refer to Front Compartment Air Deflector Replacement .
  8. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
