Keyless Entry Wiring Schematics

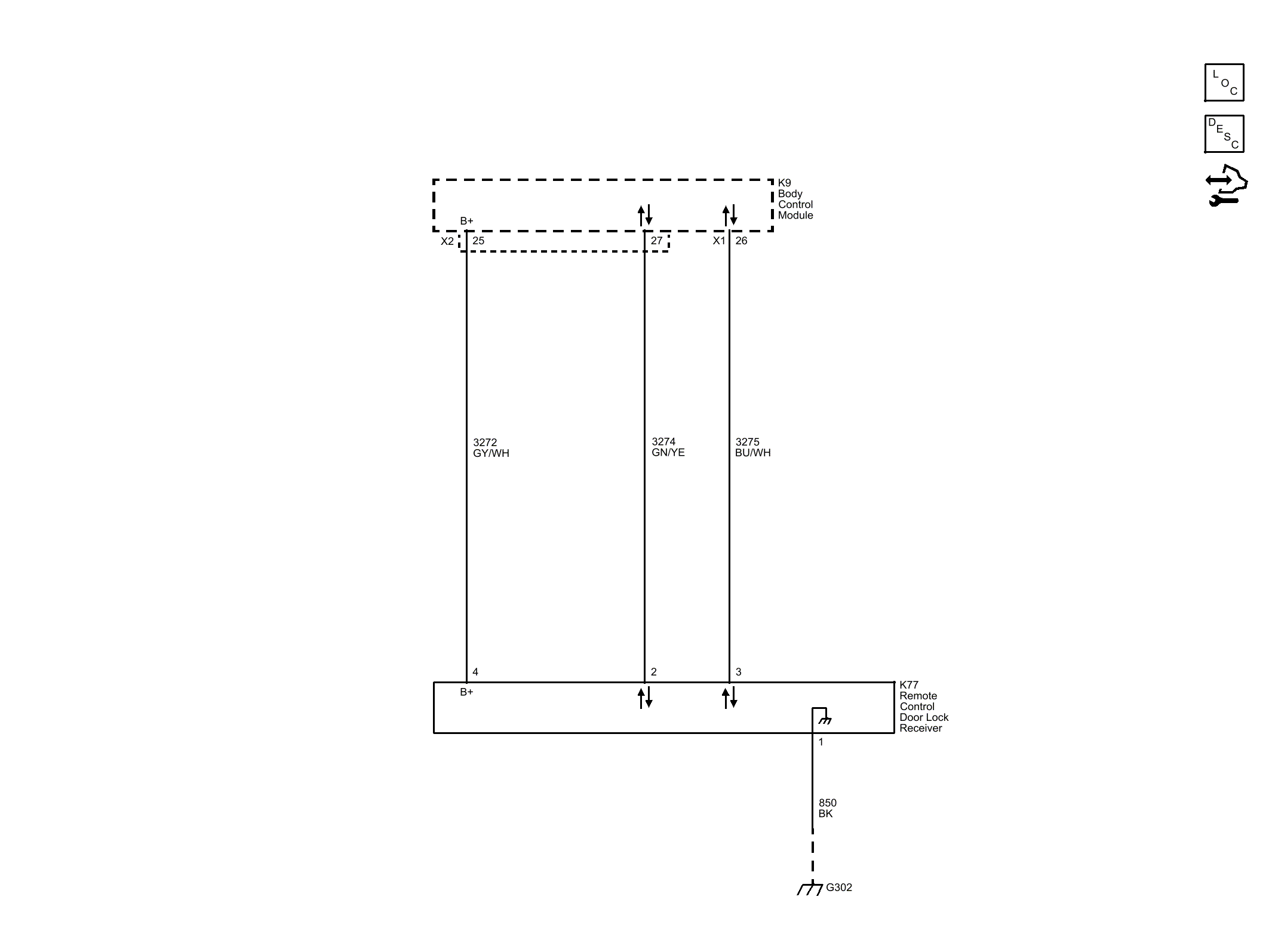

Fig 1: Keyless Entry Wiring Schematic
GM3274084Courtesy of GENERAL MOTORS COMPANY
