Front Compartment Splash Shield Replacement
Front Compartment Splash Shield Replacement

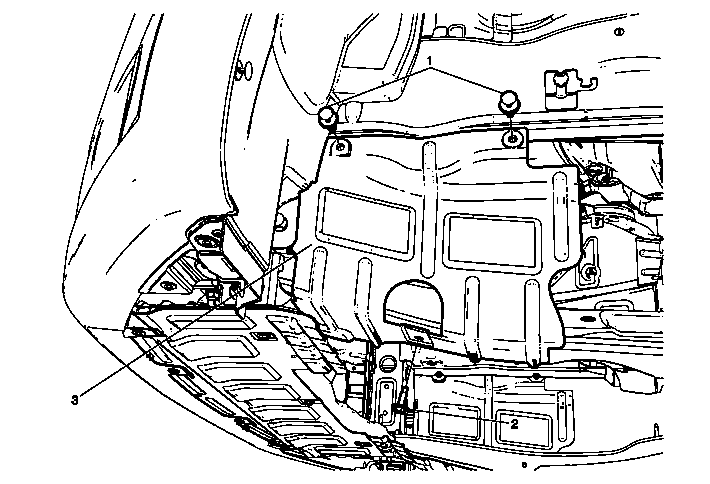

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Splash Shield Retainer (Qty 2) |
| 2 | Front Compartment Splash Shield Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Front Compartment Splash Shield |
