Removal Procedure

  1. Remove the generator. Refer to Generator Replacement .

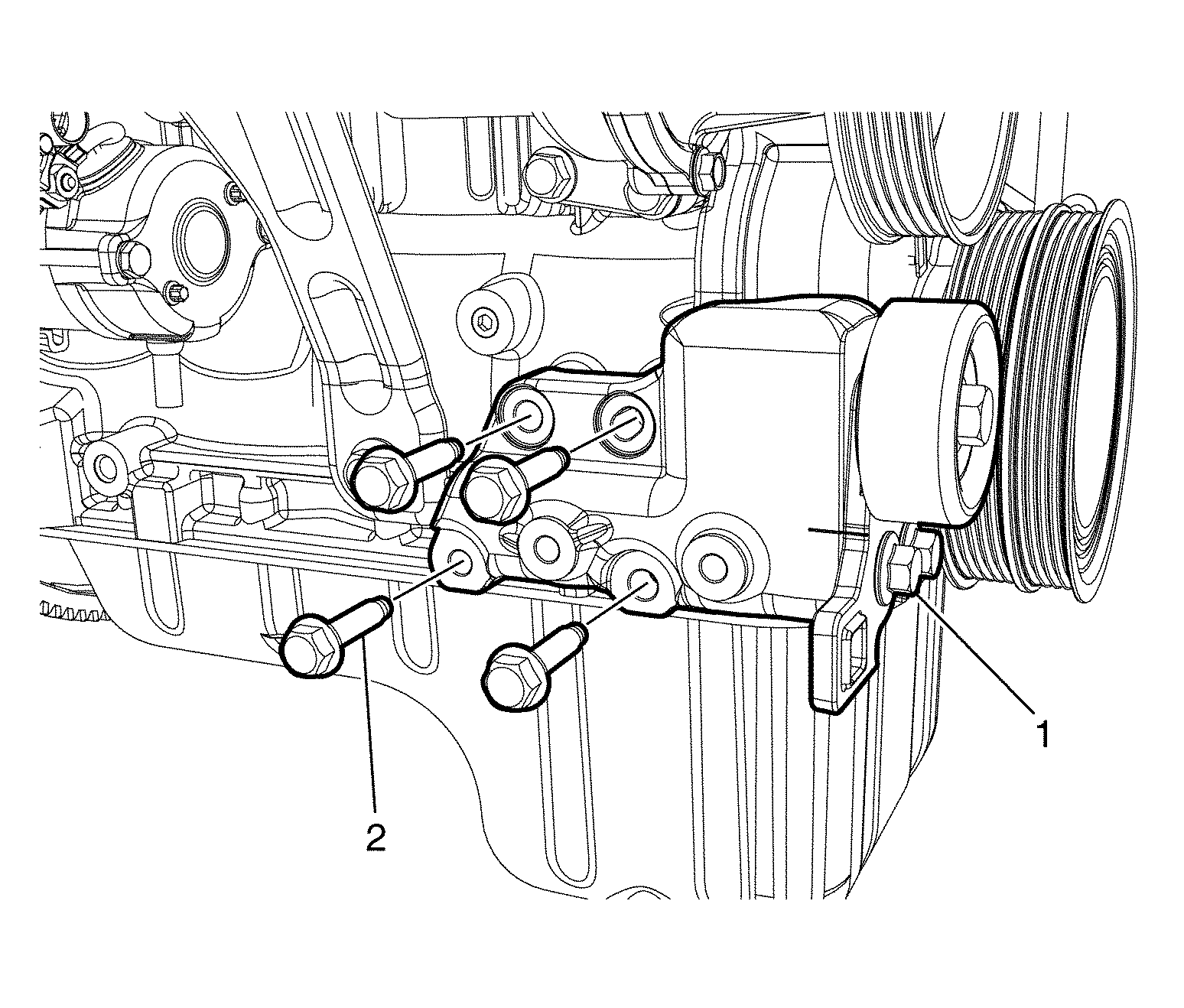

    2. Fig 1: Generator Bracket
    GM3416017Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 4 generator bracket retaining bolts (2).
  3. Remove the generator bracket (1).
