X50D Fuse Block - Battery X4

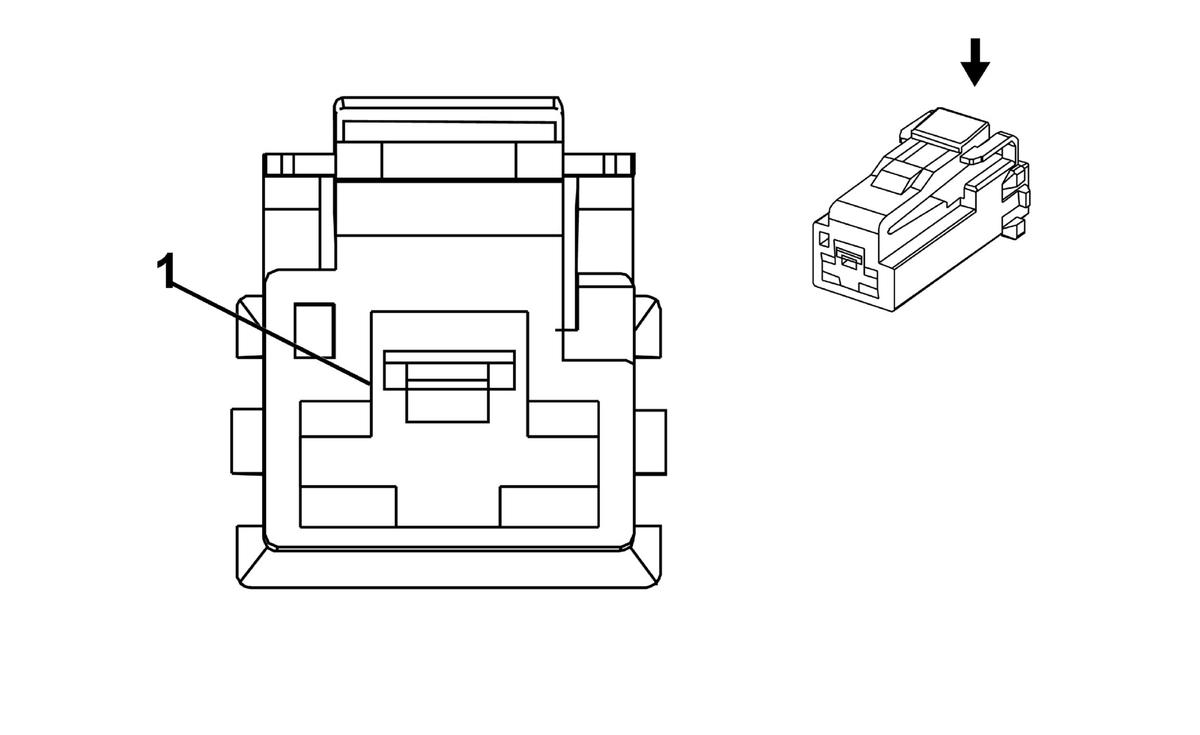

Fig 1: X50D Fuse Block - Battery X4

Courtesy of GENERAL MOTORS COMPANY

X50D Fuse Block - Battery X4

Pin	Wire	Circuit	Function
1	10 RD	540	Battery Positive Voltage

Connector Part Information Harness Type: Battery OEM Connector: MG613689-1 Service Connector: Pending Description: 375 Series (BK)

Terminal Part Information Terminated Lead: Service by Harness - See Part Catalog Release Tool: Service by Harness - See Part Catalog Diagnostic Test Probe: Service by Harness - See Part Catalog
