Instrument Panel Multifunction Switch Replacement
Courtesy of GENERAL MOTORS COMPANY Instrument Panel Multifunction Switch Replacement

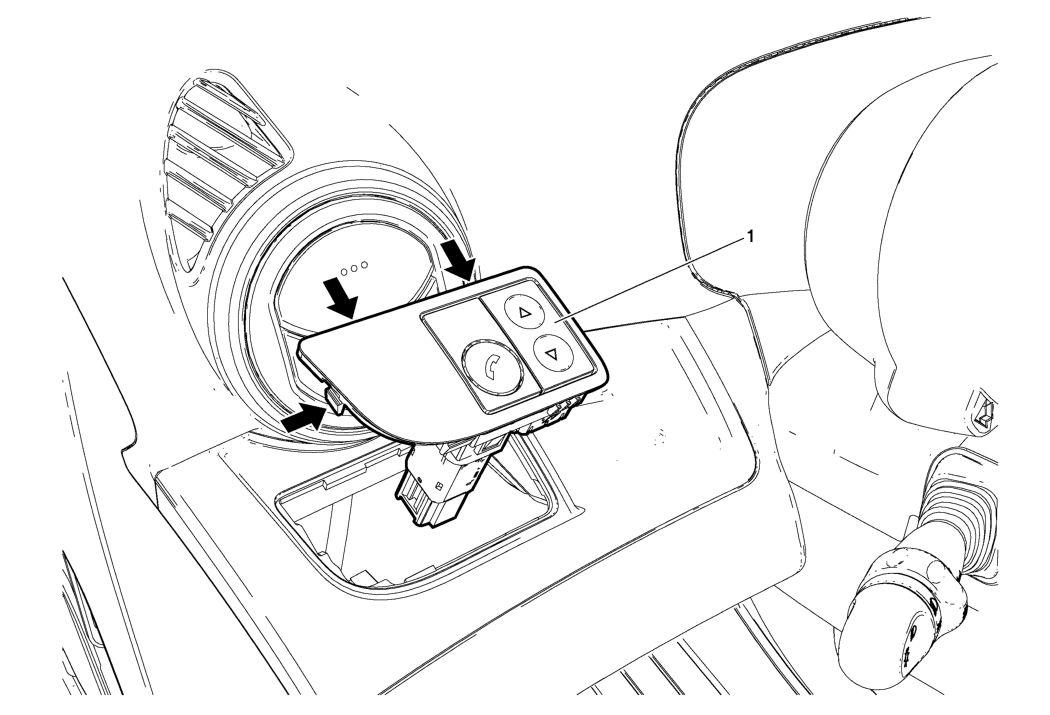

| Callout |
Component Name |
| 1 |
Instrument Panel Multifunction Switch Assembly Procedure
- Disconnect the tabs (the arrows in the illustration) carefully to prevent the damage for the switch and molding.
- Disconnect the electrical connector.
|
