Assembly Procedure

  1. Install the fuel tank heat shield. Refer to Fuel Tank Heat Shield Replacement (LL0) , Fuel Tank Heat Shield Replacement (LFM) .
  2. Install the fuel pump (5). Refer to Fuel Tank Fuel Pump Module Replacement (LL0) , Fuel Tank Fuel Pump Module Replacement (LFM) .
  3. Install the evaporative emission canister (4). Refer to Evaporative Emission Canister Replacement (LL0) , Evaporative Emission Canister Replacement (LFM) .

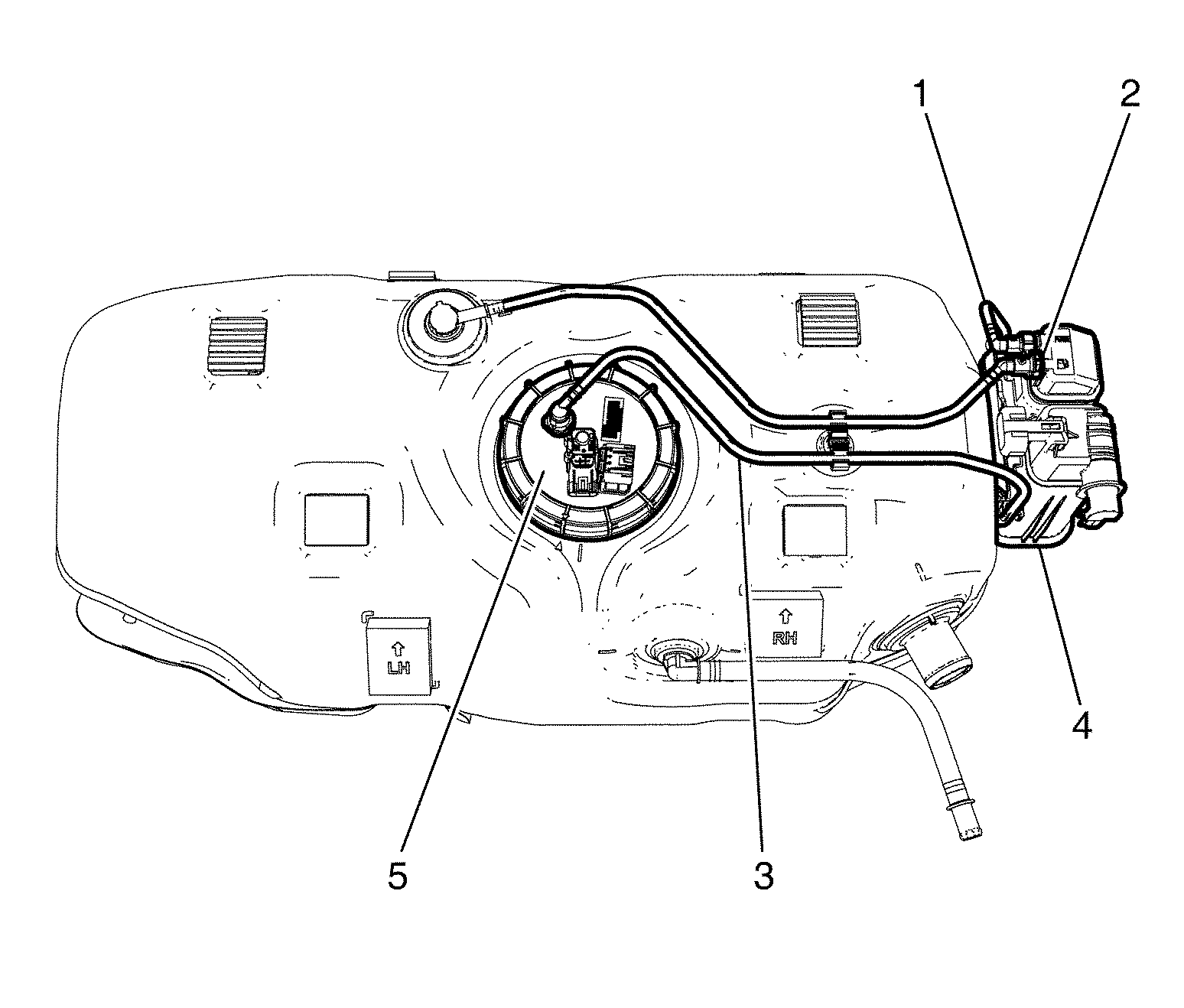

    4. Fig 1: Evaporative Emission Canister Purge Pipe
    GM3415999Courtesy of GENERAL MOTORS COMPANY
  4. Install the fuel tank feed pipe (3).
  5. Connect the fuel tank vent pipe connector (2).
  6. Install the evaporative emission canister purge pipe (1).
