Subsystem References (4 of 5) Wiring Schematics
Subsystem References (4 of 5) Wiring Schematics

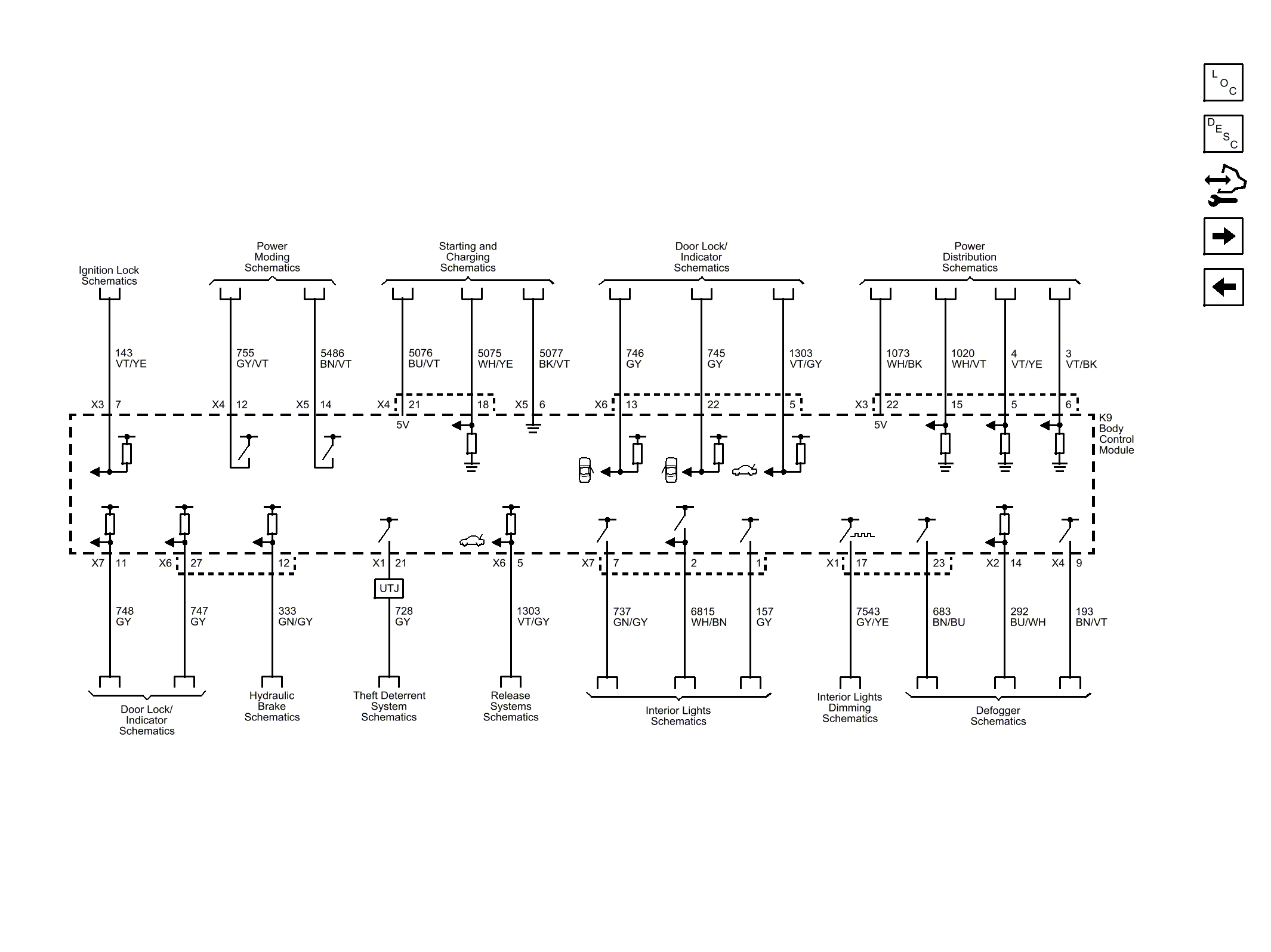

Fig 1: Subsystem References (4 of 5) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
