Subsystem References (5 of 5) Wiring Schematics
Subsystem References (5 of 5) Wiring Schematics

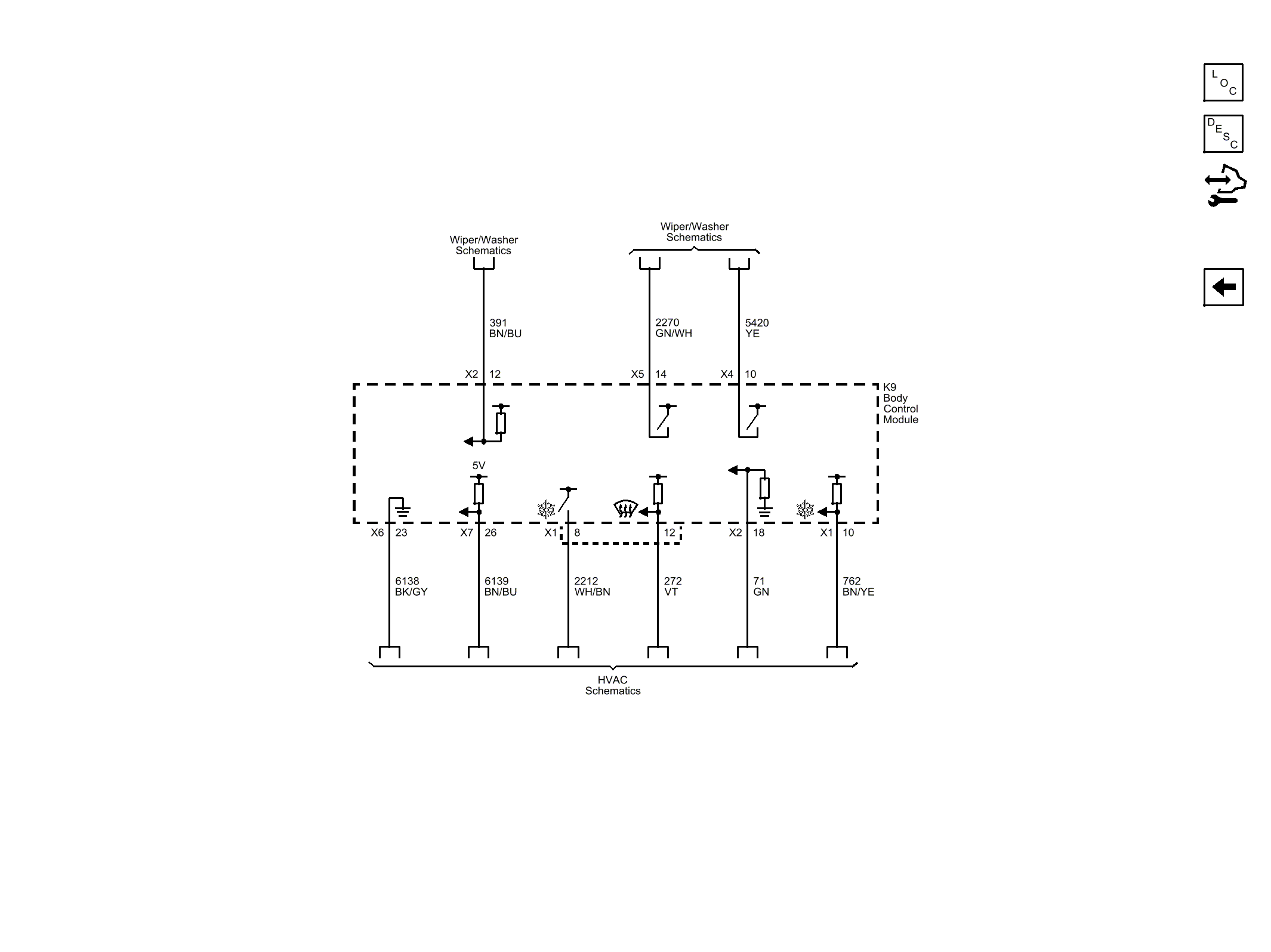

Fig 1: Subsystem References (5 of 5) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
