High Speed GMLAN Bus 2 Wiring Schematics

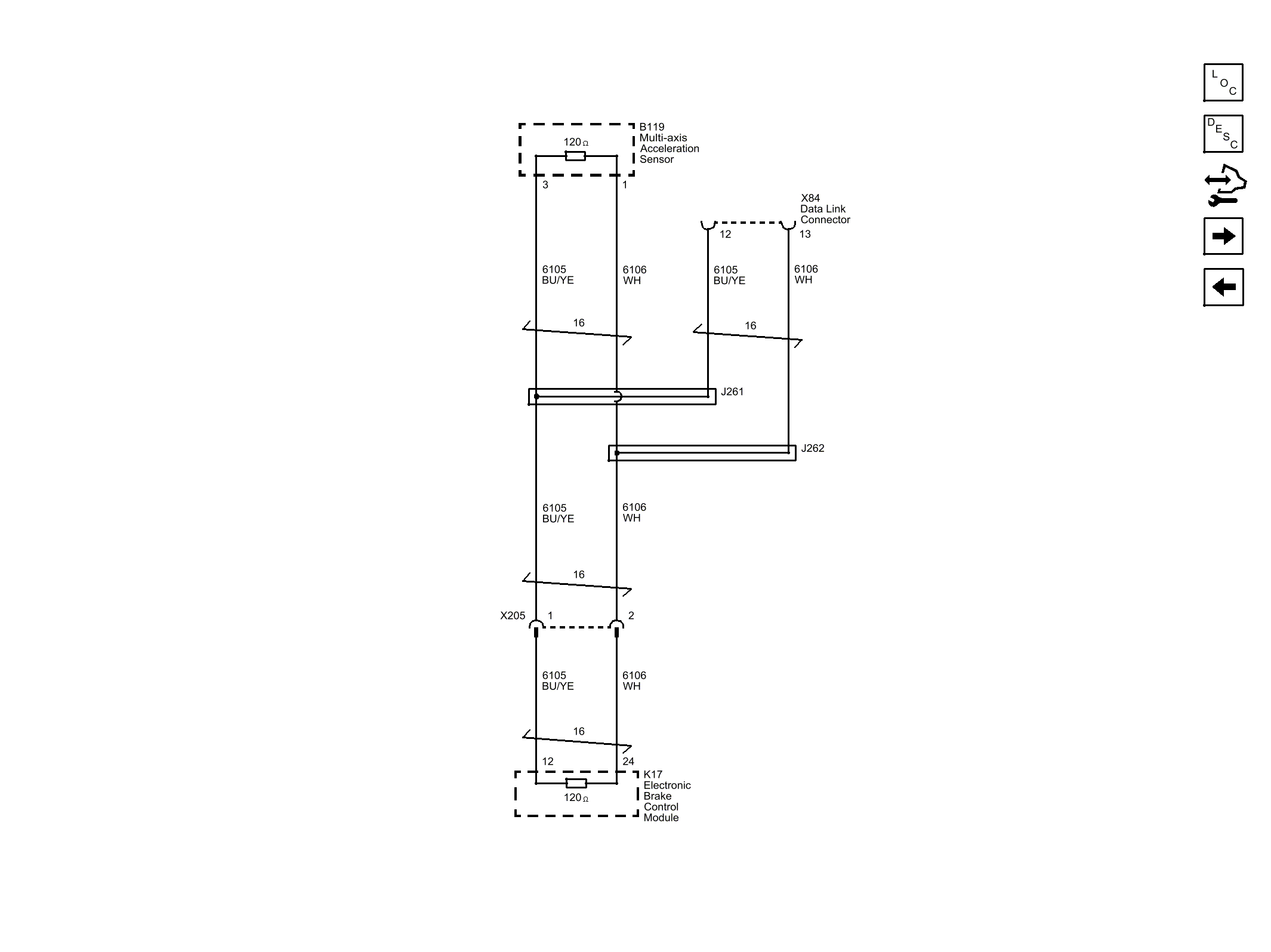

Fig 1: High Speed GMLAN Bus 2 Wiring Schematic
GM3273771Courtesy of GENERAL MOTORS COMPANY
