Object Detection Wiring Schematics

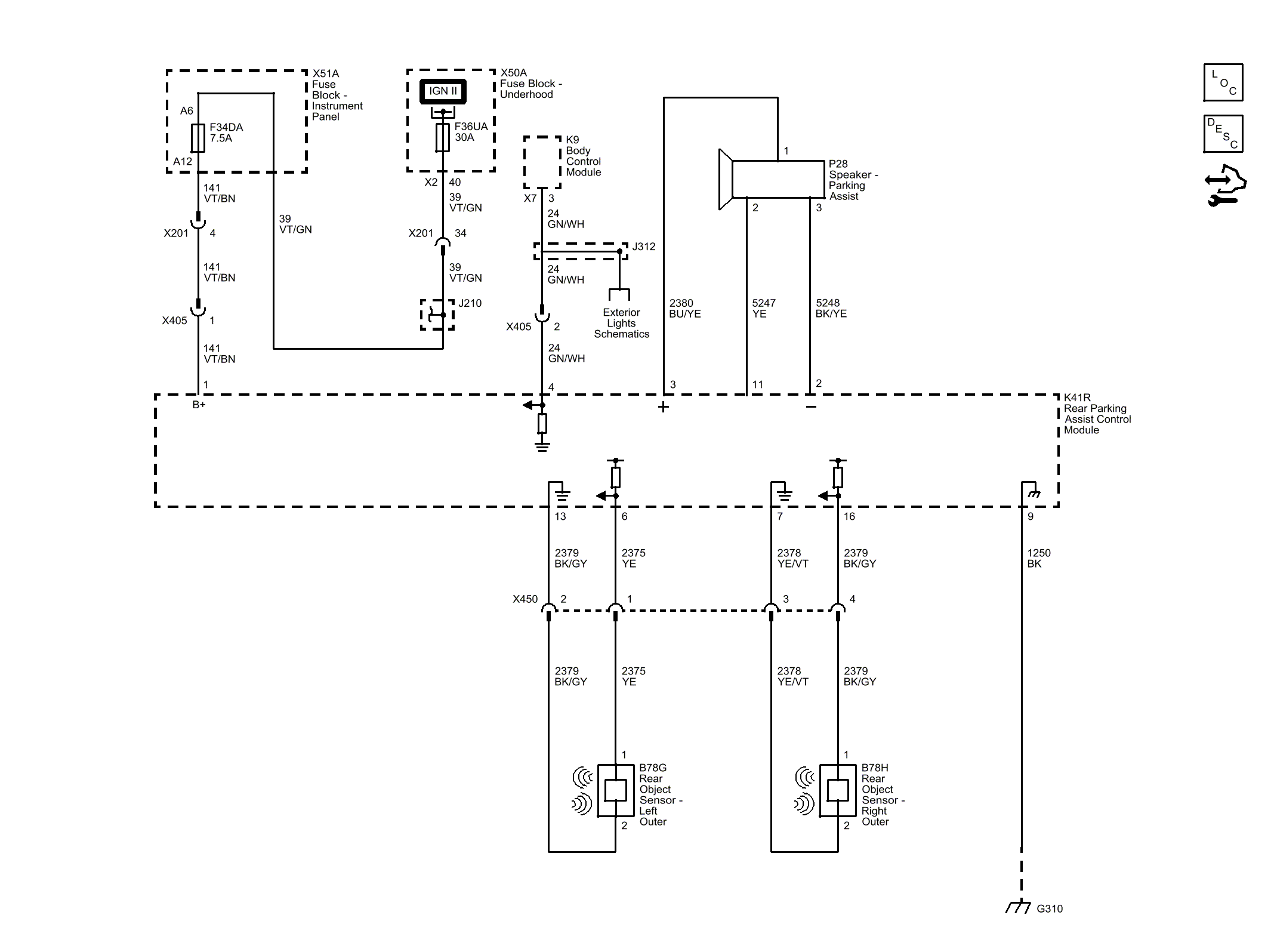

Fig 1: Object Detection Wiring Schematic
GM3274087Courtesy of GENERAL MOTORS COMPANY
