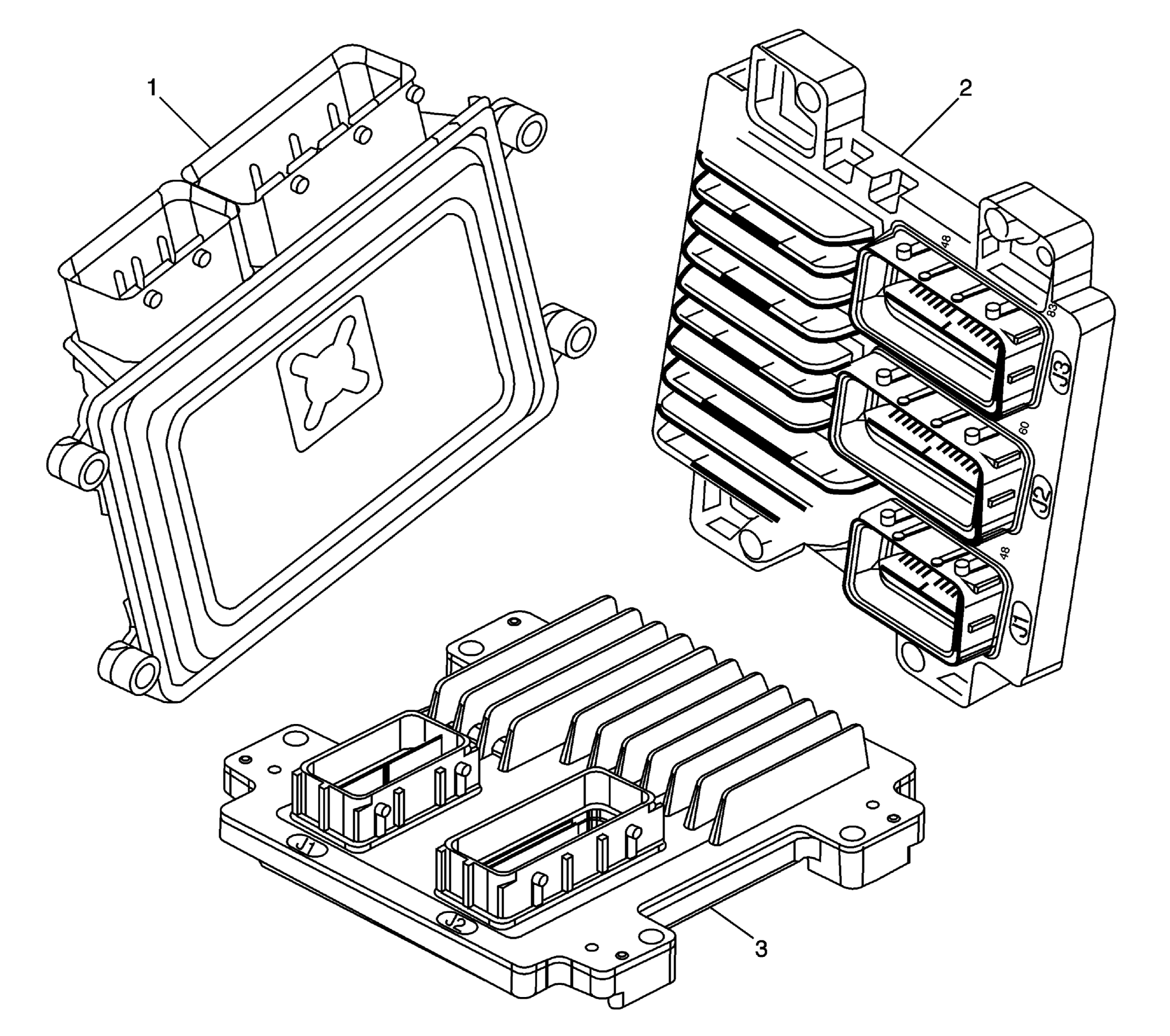

Engine Control Module Description: Overview
Courtesy of GENERAL MOTORS COMPANY Engine Control Module Description
| Callout |
Component Name |
| 1 |
Engine Control Module
NOTE:
ECM with edge mounted connectors
|
| 2 |
E78 Engine Control Module
NOTE:
ECM with 3 face mounted connectors
|
| 3 |
E83 Engine Control Module
NOTE:
ECM with 2 face mounted connectors
|
