SPO Accessory Rear Vision Camera

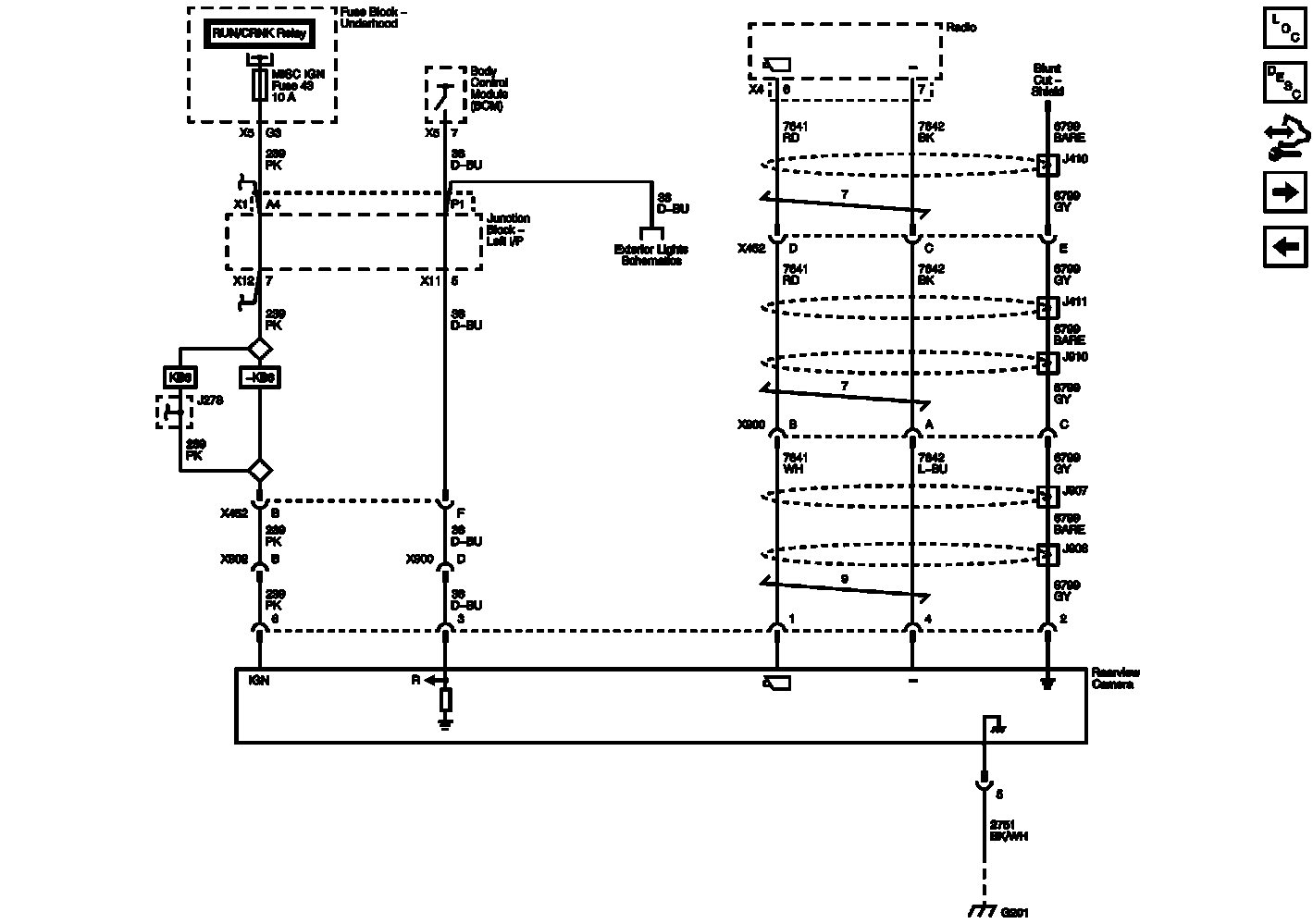

Fig 1: SPO Accessory Rear Vision Camera Wiring Schematic
GM2761969Courtesy of GENERAL MOTORS COMPANY
