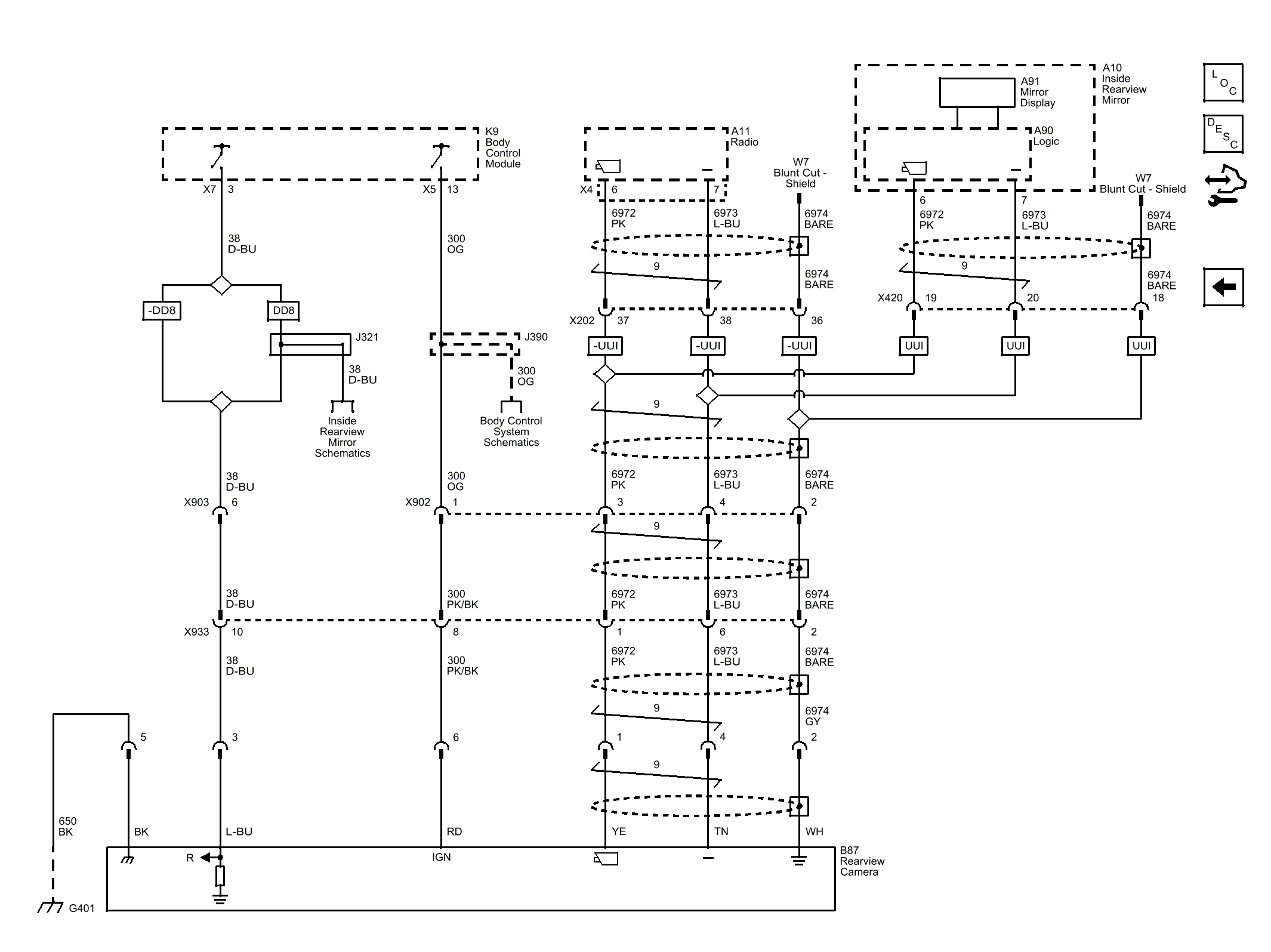

Home › Chevrolet › 2014 › Traverse LS, 4D Utility › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Vision Camera (UVC)
