KA1 and KB6 Subsystem References

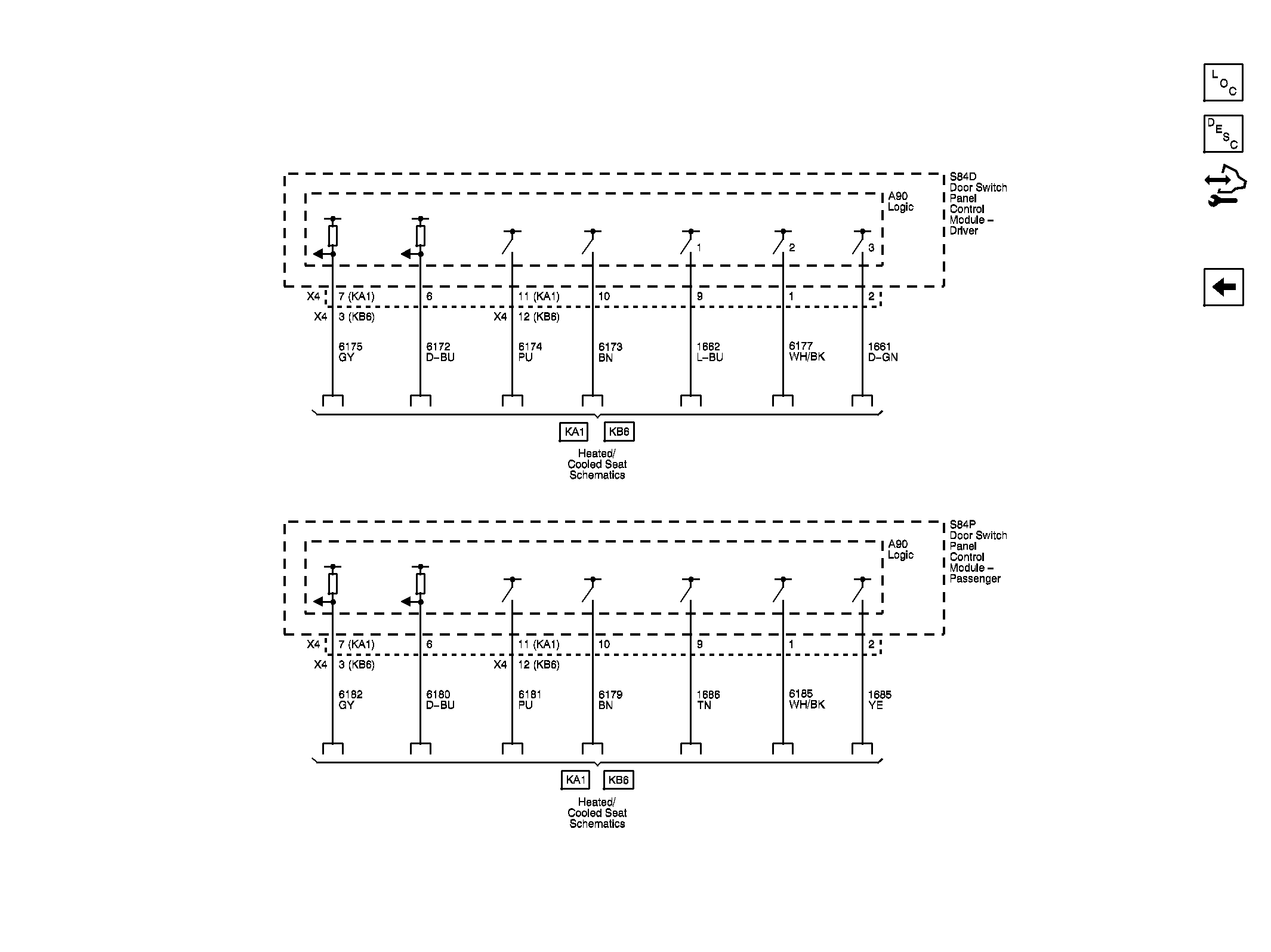

Fig 1: KA1 And KB6 Subsystem References Wiring Schematics
GM3326632Courtesy of GENERAL MOTORS COMPANY
