Home › Chevrolet › 2014 › Traverse LS, 4D Utility › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

Defogger Wiring Schematics: Defogger

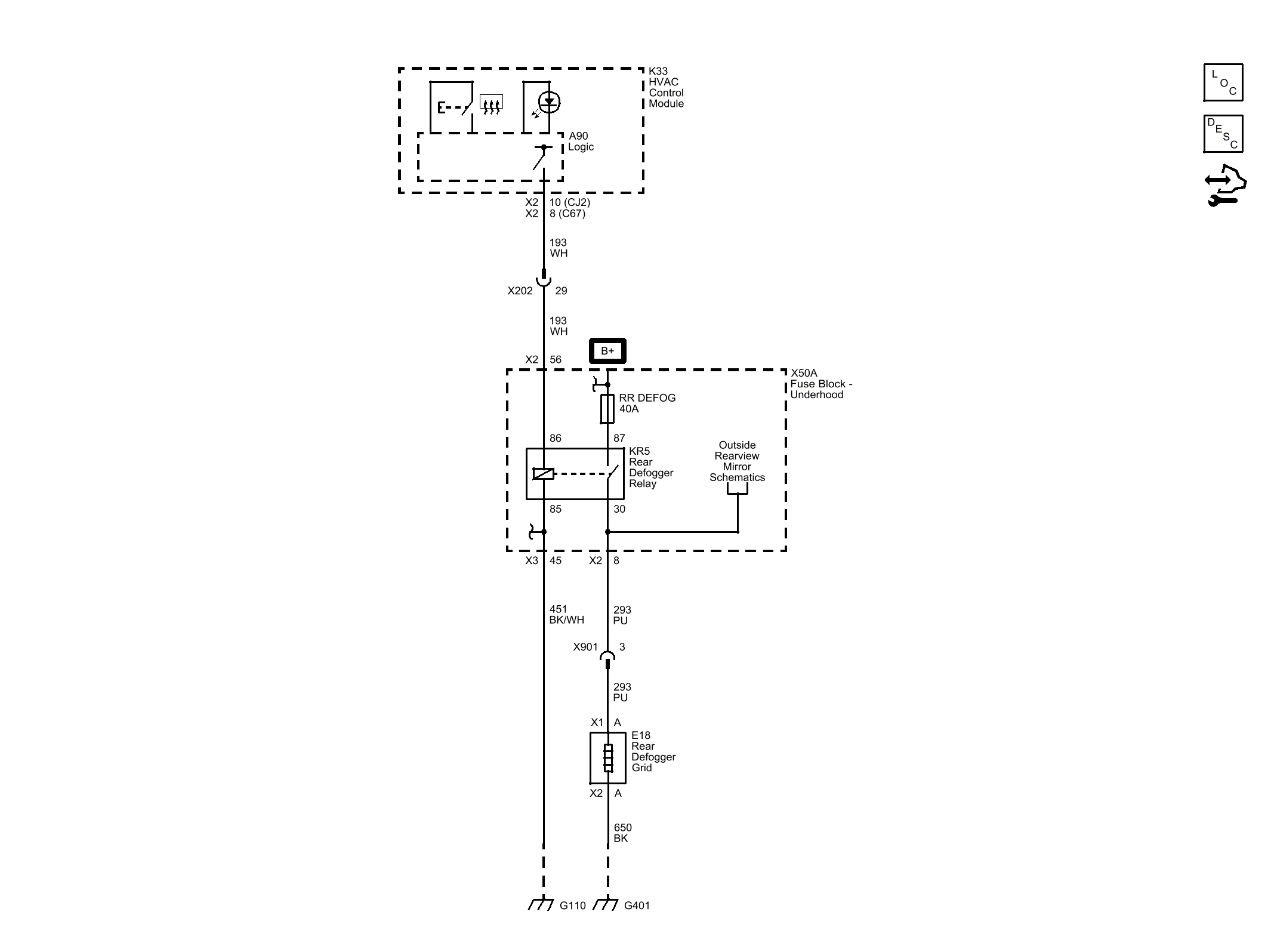

Fig 1: Defogger Wiring Schematics
GM3326427Courtesy of GENERAL MOTORS COMPANY
