Starting System and Charging System Wiring Schematics: Charging

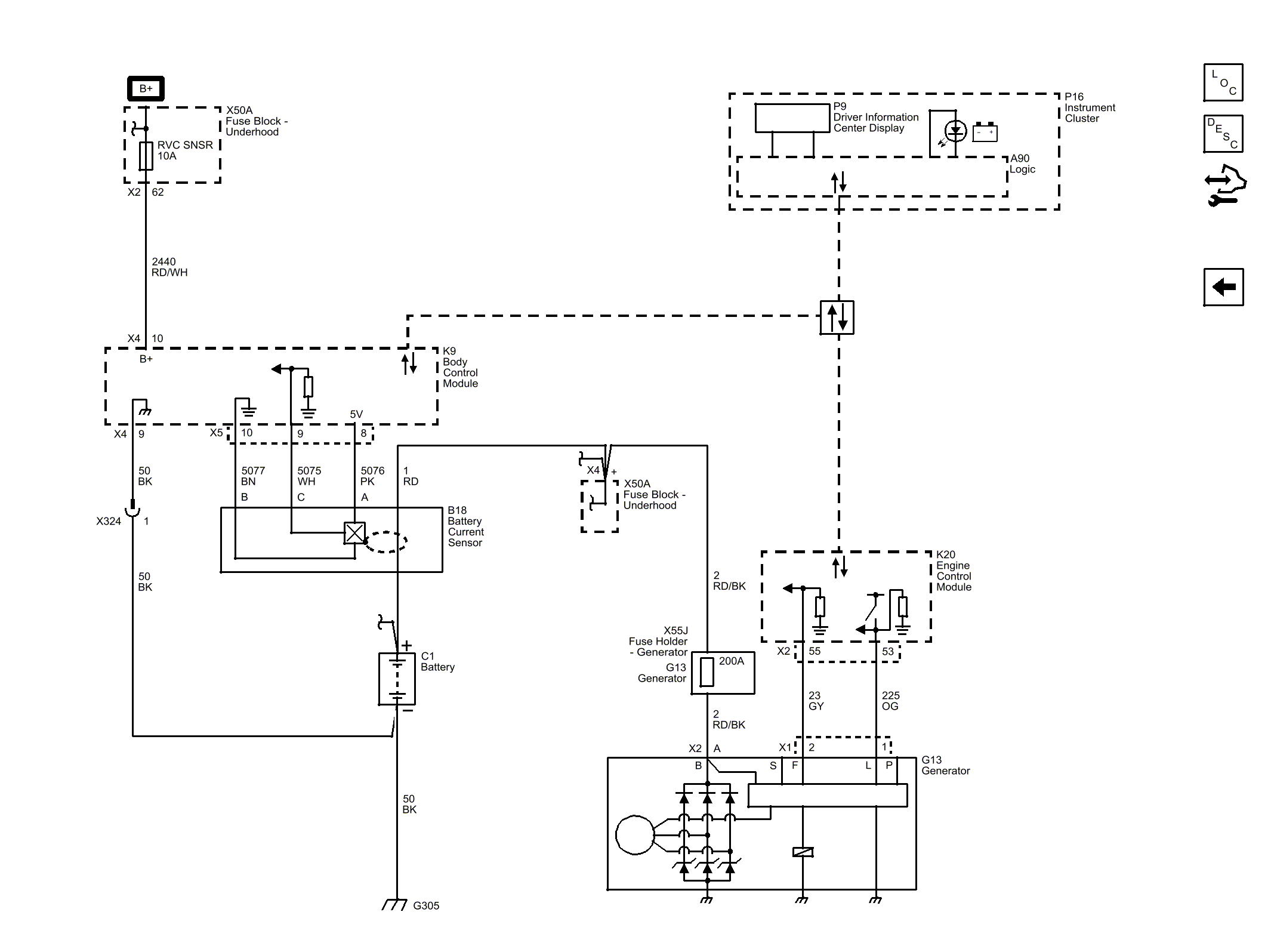

Fig 1: Charging Wiring Schematics
GM3329317Courtesy of GENERAL MOTORS COMPANY
