Power, Ground and References to Power Distribution and Power Moding
Power, Ground and References to Power Distribution and Power Moding

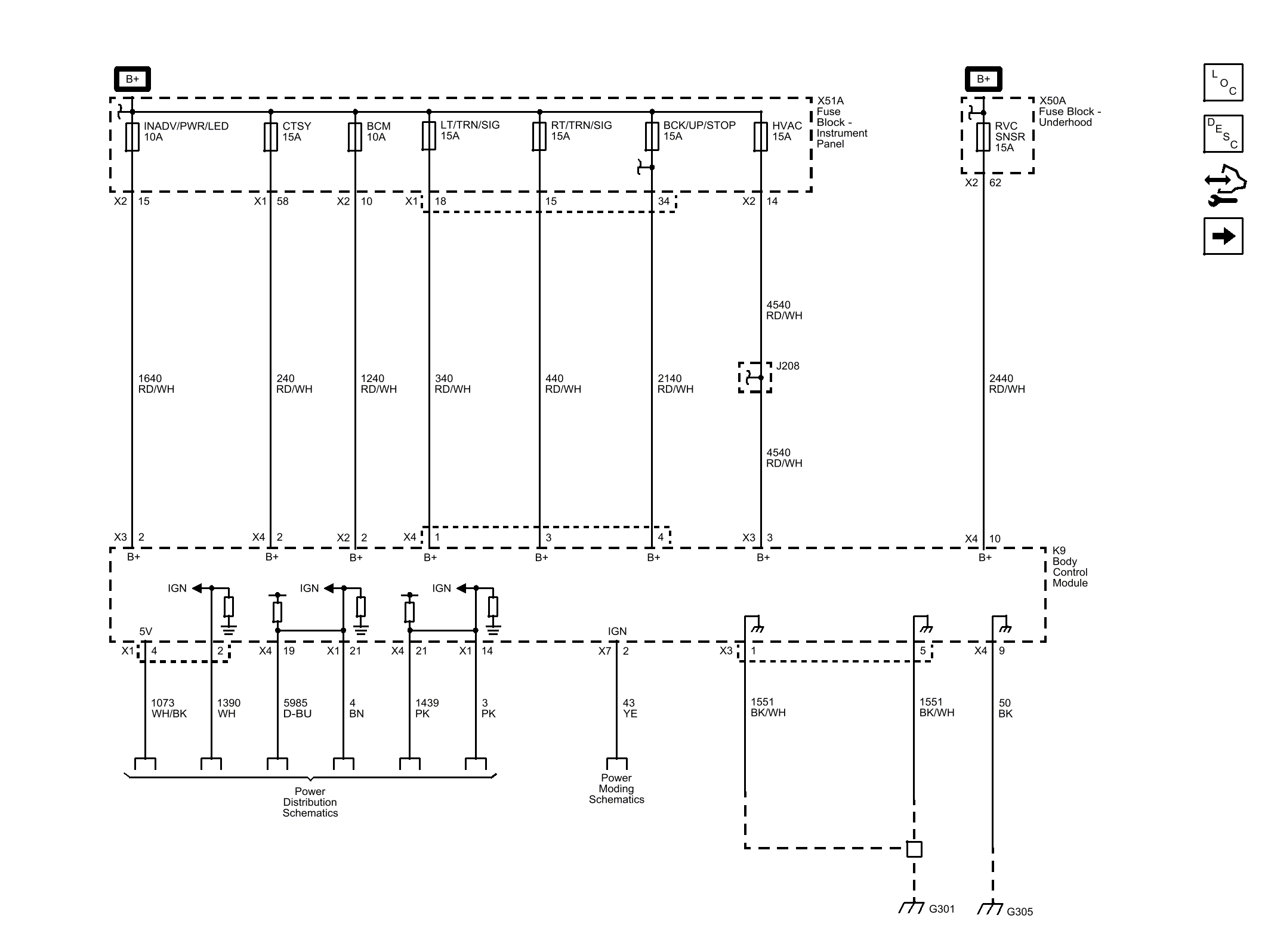

Fig 1: Power, Ground And References To Power Distribution And Power Moding Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
