Traverse LTZ, AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Cellular System, Entertainment System, And Navigation System
›
Schematic Wiring Diagrams
›
Radio/Navigation System Wiring Schematics
›
Rear Audio Controls, Lighting, Data Communication and Infrared Module
Rear Audio Controls, Lighting, Data Communication and Infrared Module

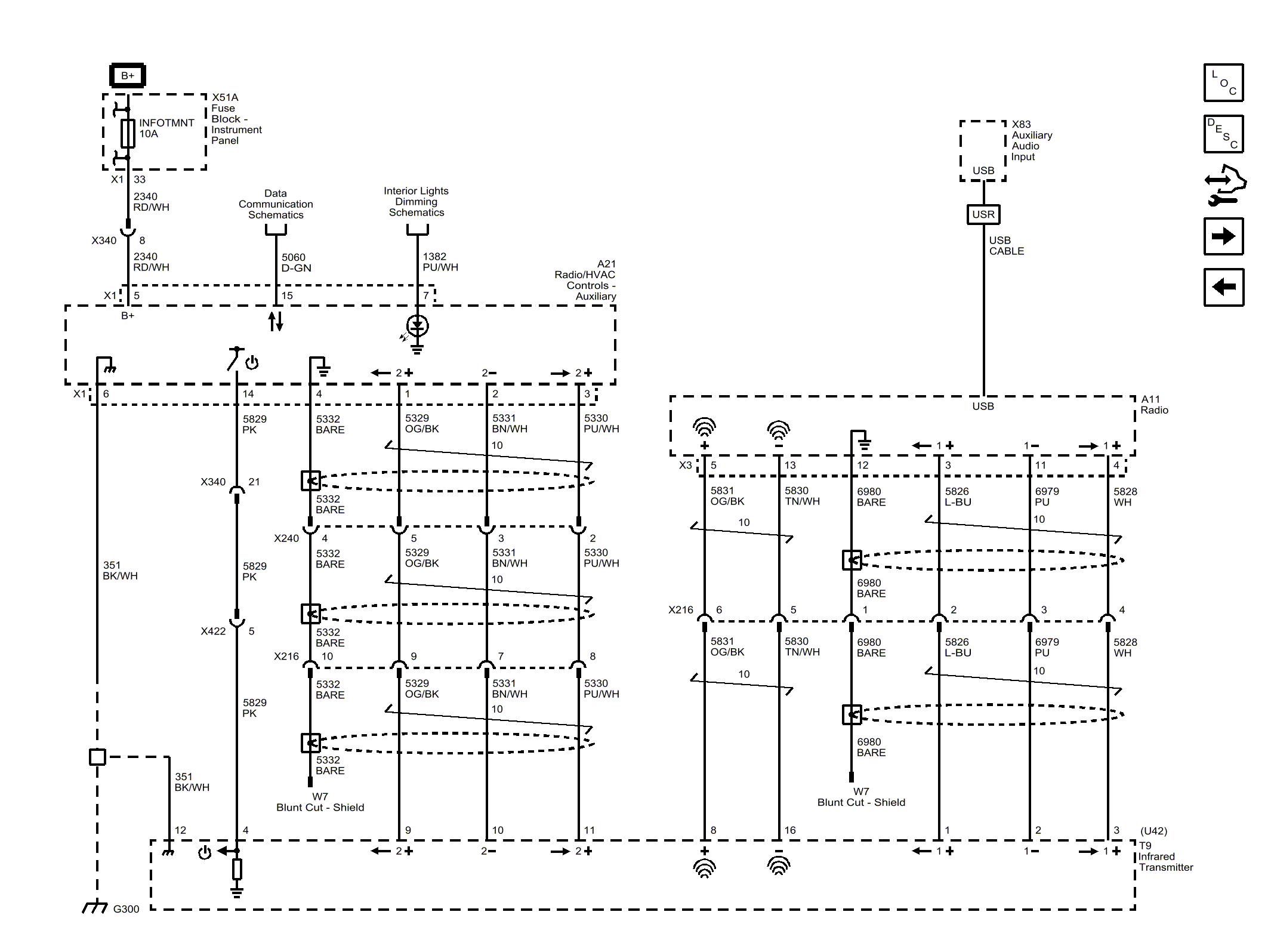

Fig 1: Rear Audio Controls, Lighting, Data Communication and Infrared Module Wiring Schematics
