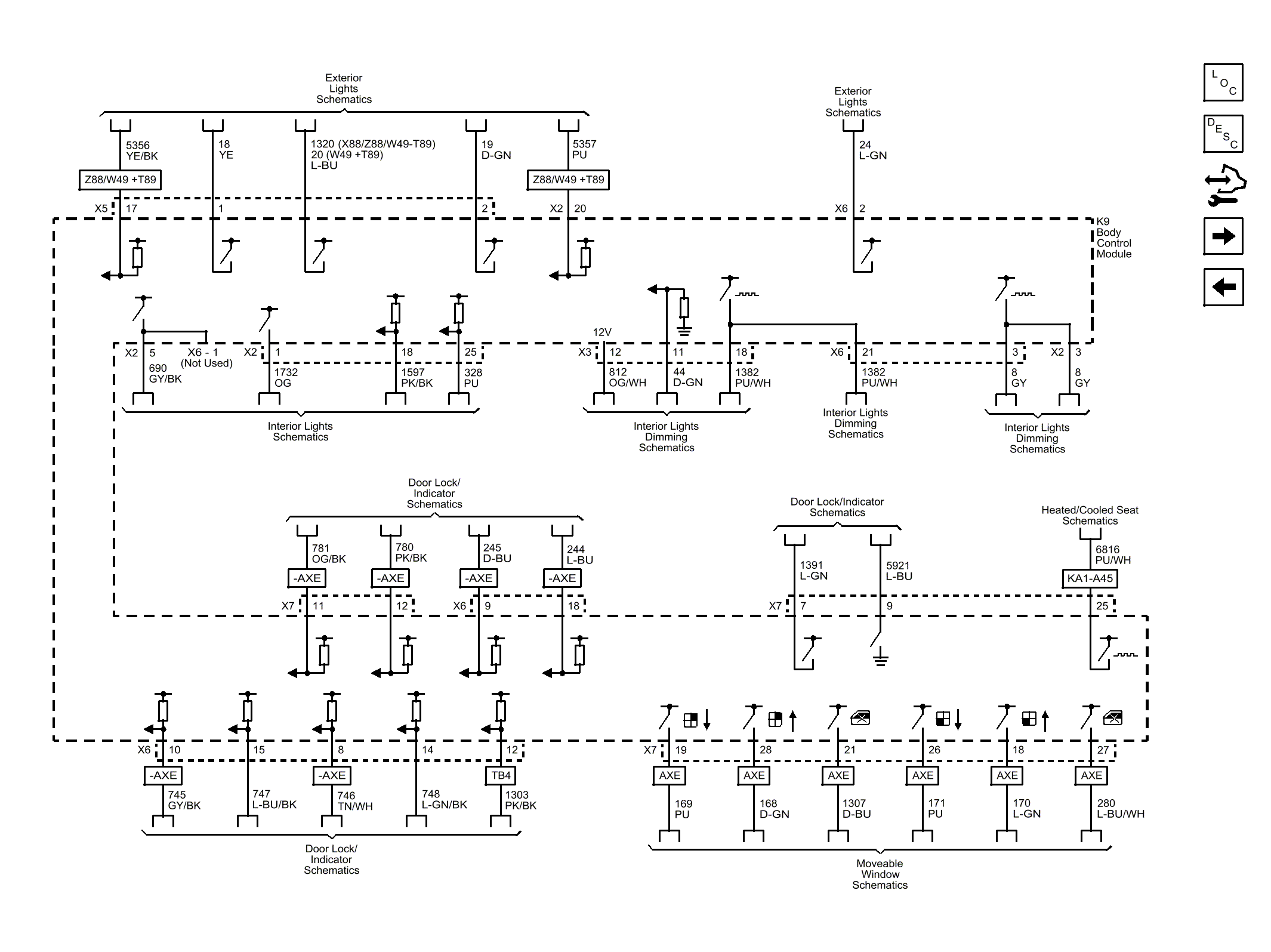

Home › Chevrolet › 2014 › Traverse LTZ, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (2 of 3)
