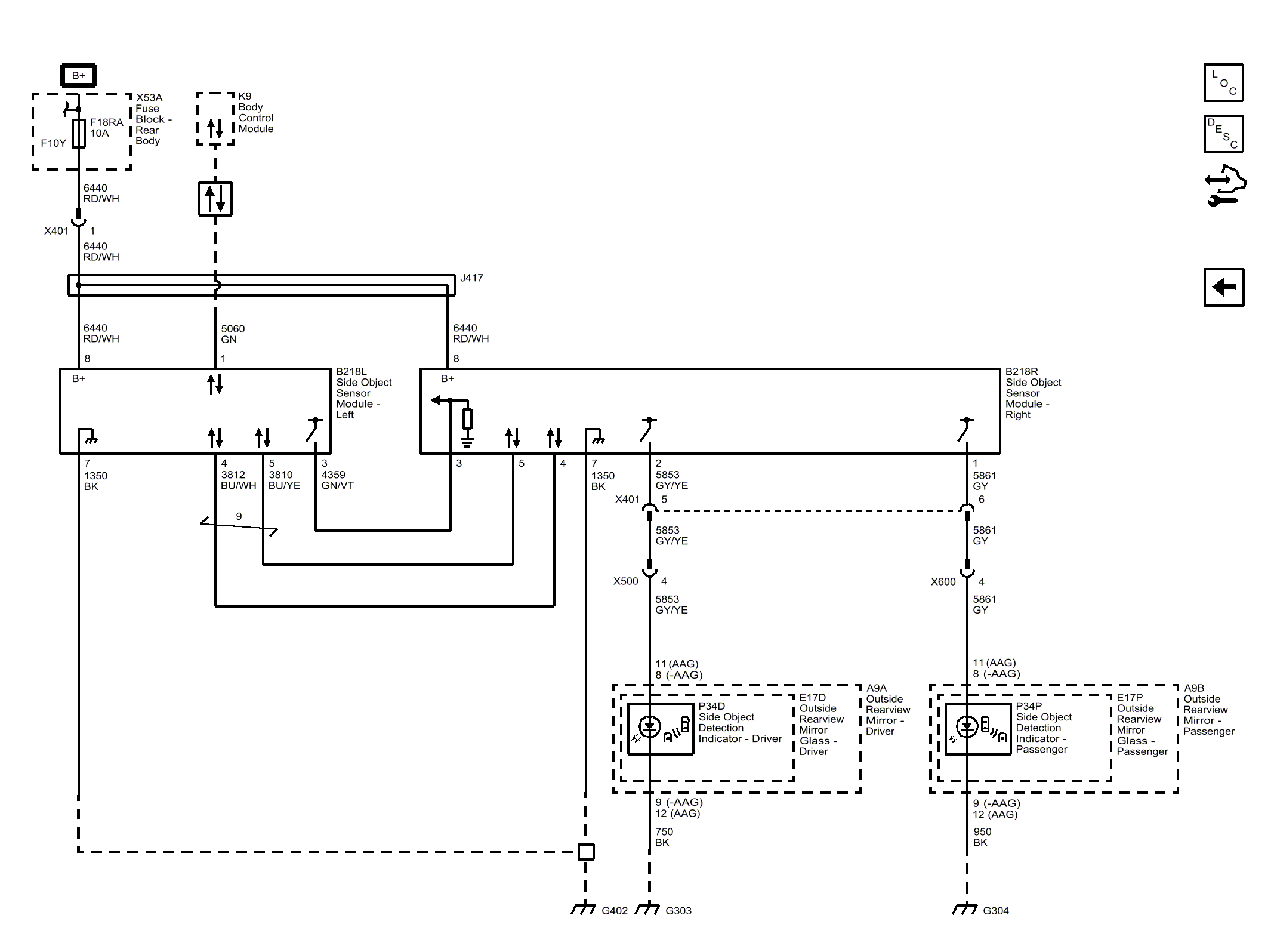

Home › Chevrolet › 2014 › Trax LS, Automatic Trans › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics (Encore) › Side Object Detection (UFT)
