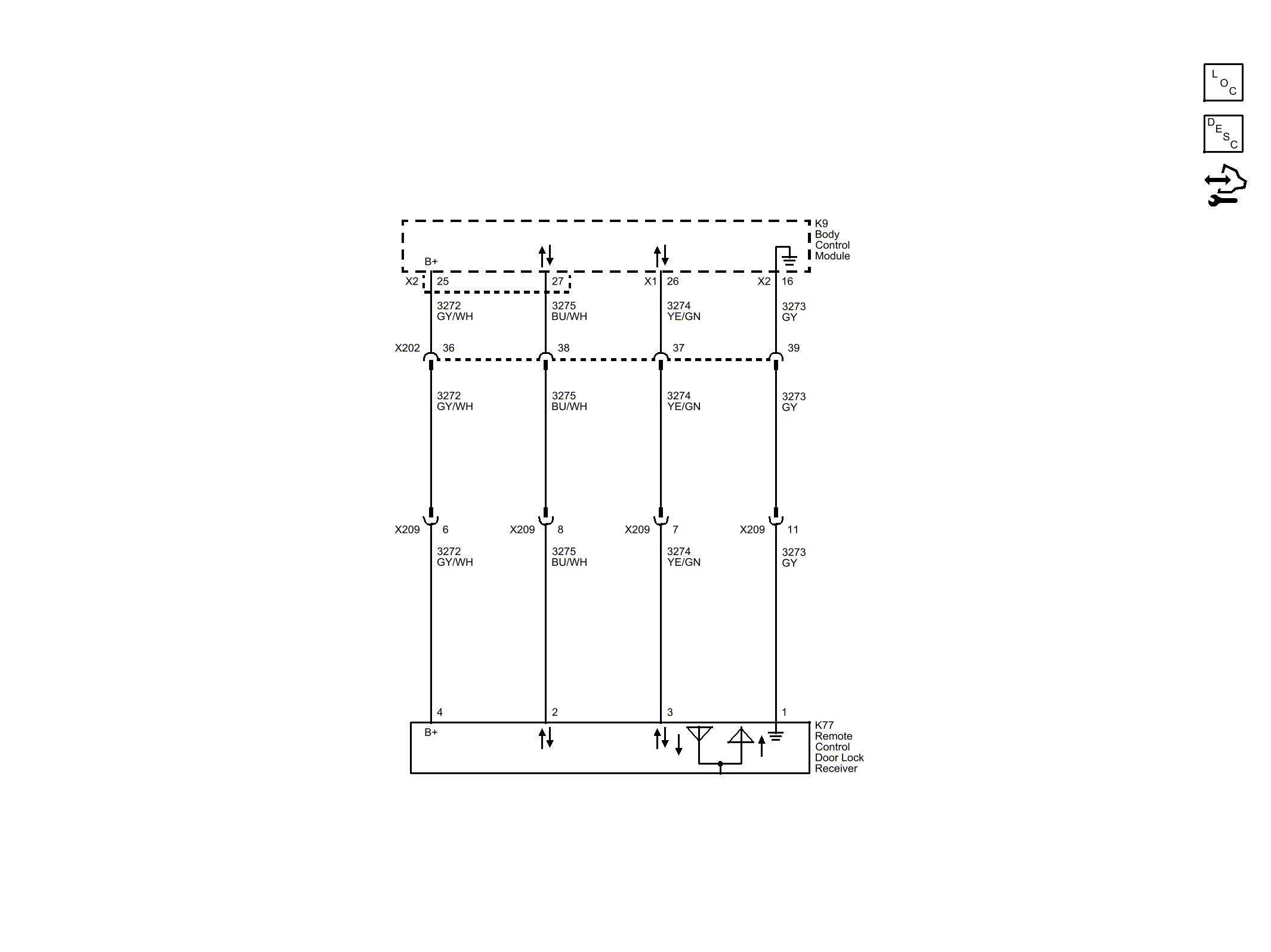

Home › Chevrolet › 2014 › Trax LS, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic WIring Diagrams › Remote Function Wiring Schematics (Trax) › Keyless Entry System
