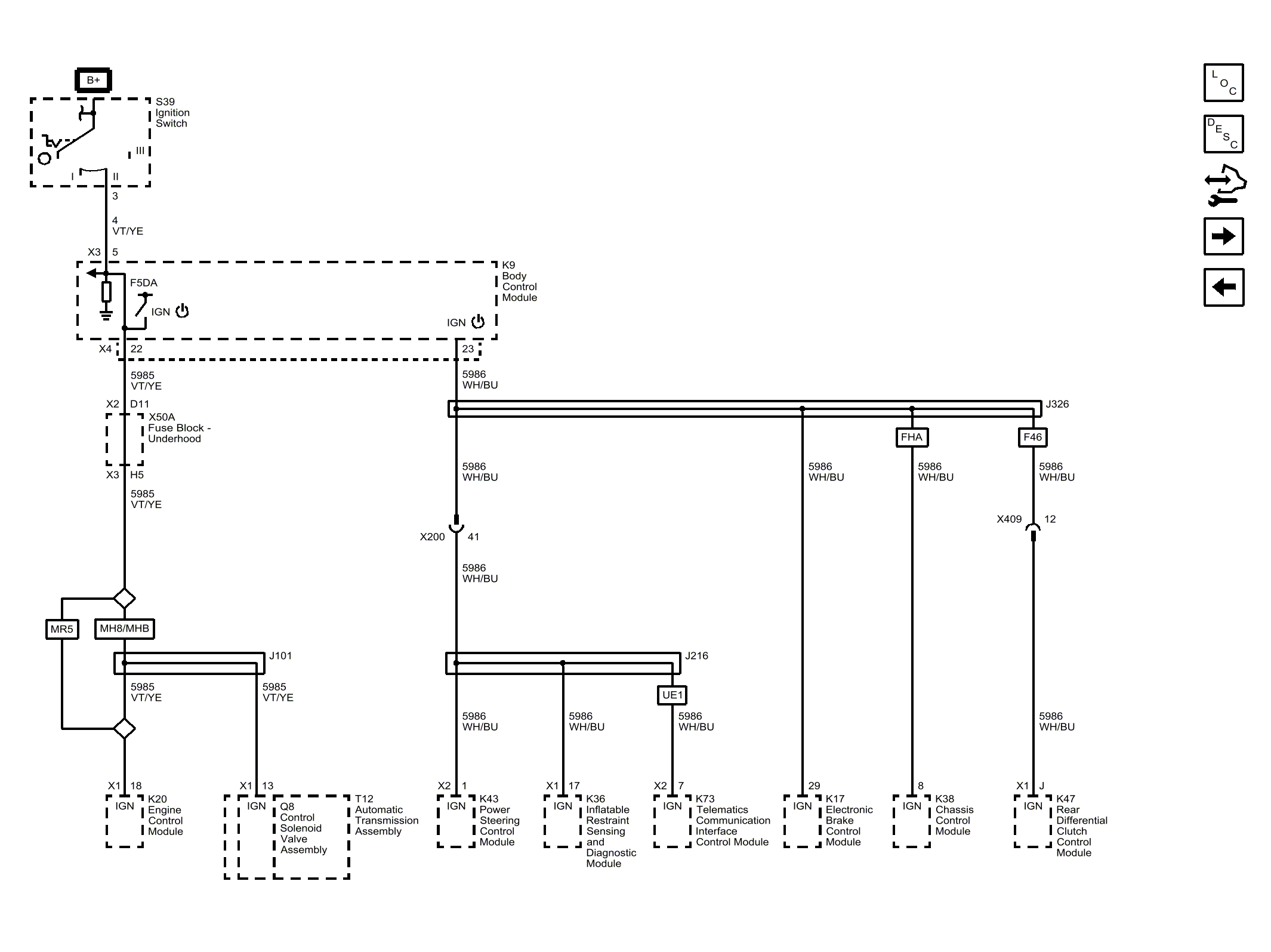

Home › Chevrolet › 2014 › Trax LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication WIring Schematics (Encore) › Communication Enable
