Power, Ground, and Low Speed GMLAN

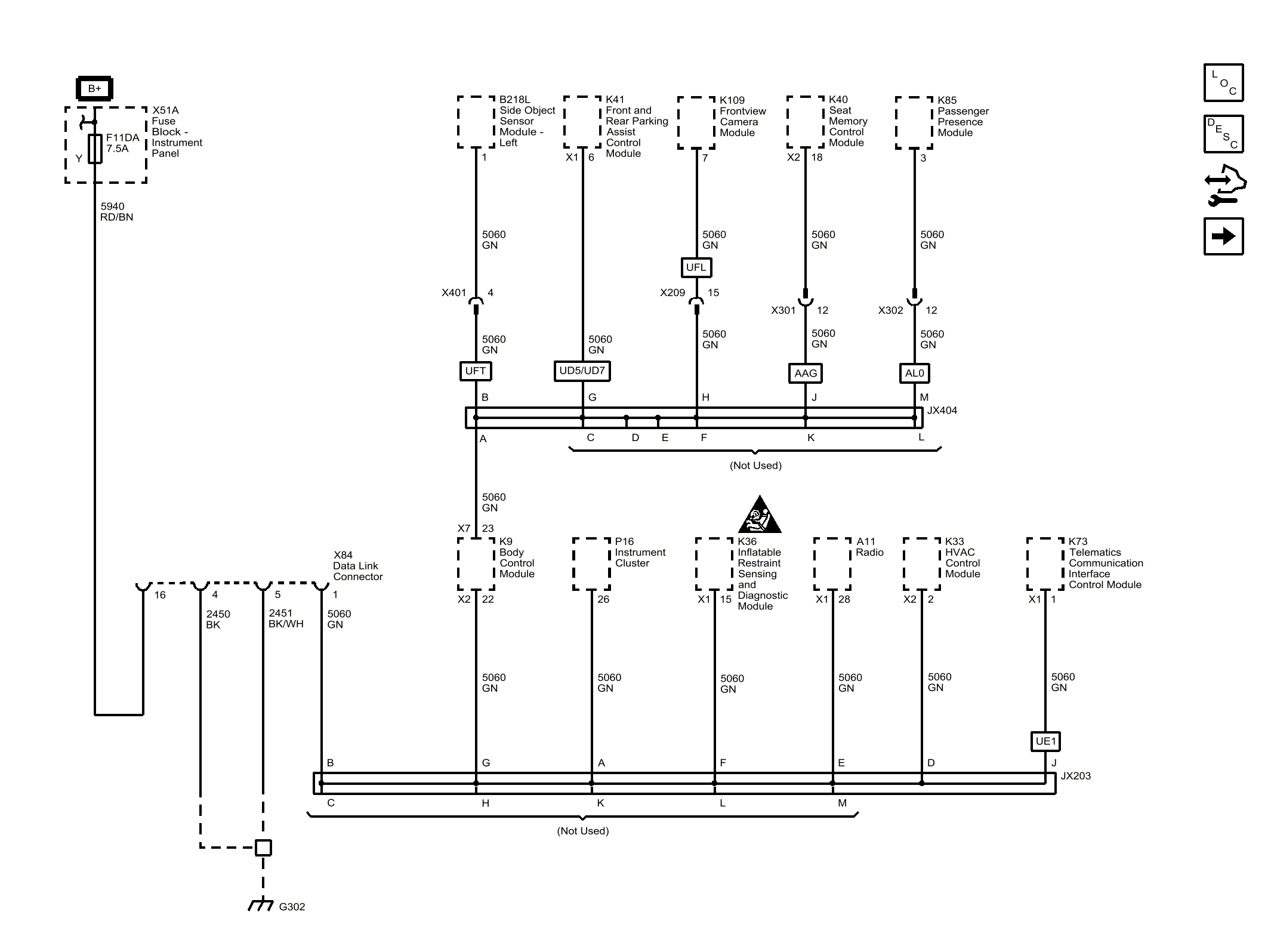

Fig 1: Power, Ground, and Low Speed GMLAN
GM3263498Courtesy of GENERAL MOTORS COMPANY
