Power, Ground, and Low Speed GMLAN

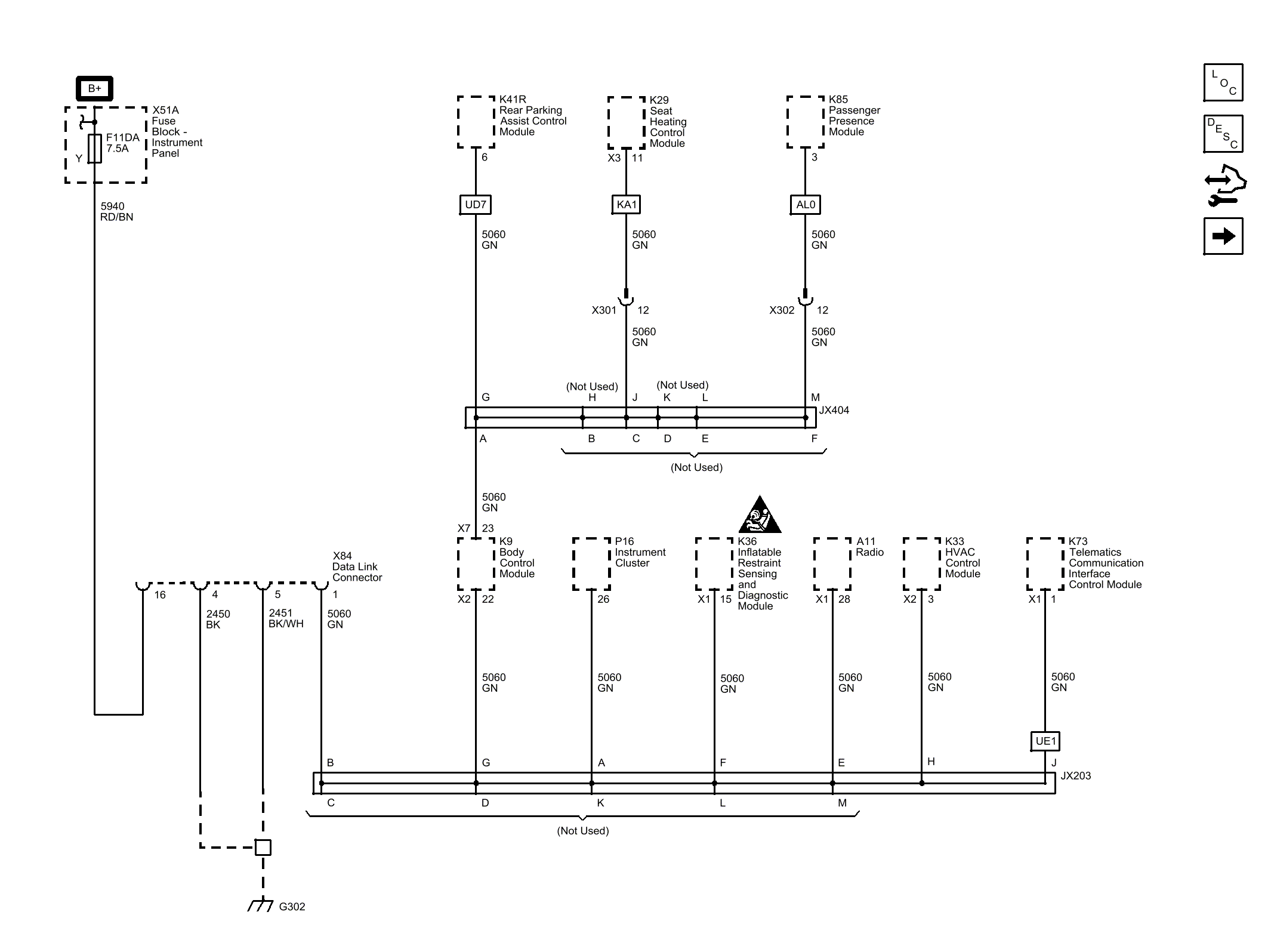

Fig 1: Power, Ground, and Low Speed GMLAN
GM3631258Courtesy of GENERAL MOTORS COMPANY
