Installation Procedure
WARNING: This page is about a different car, the 2013 Chevrolet Trax and 2013 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Position the brake caliper over the brake pads and to the caliper bracket.

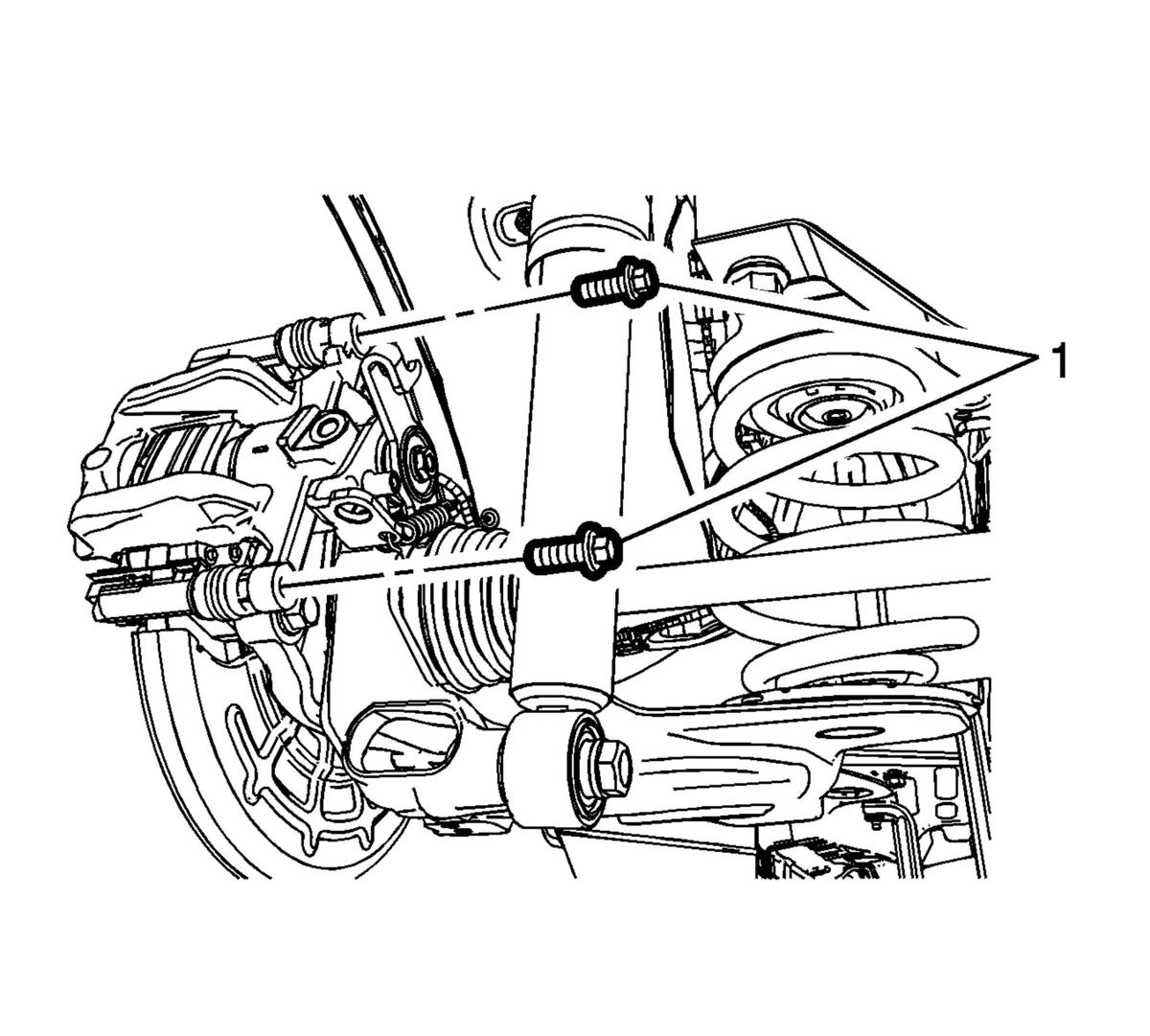

- Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolts (1) and tighten to 28 N.m (21 lb ft).

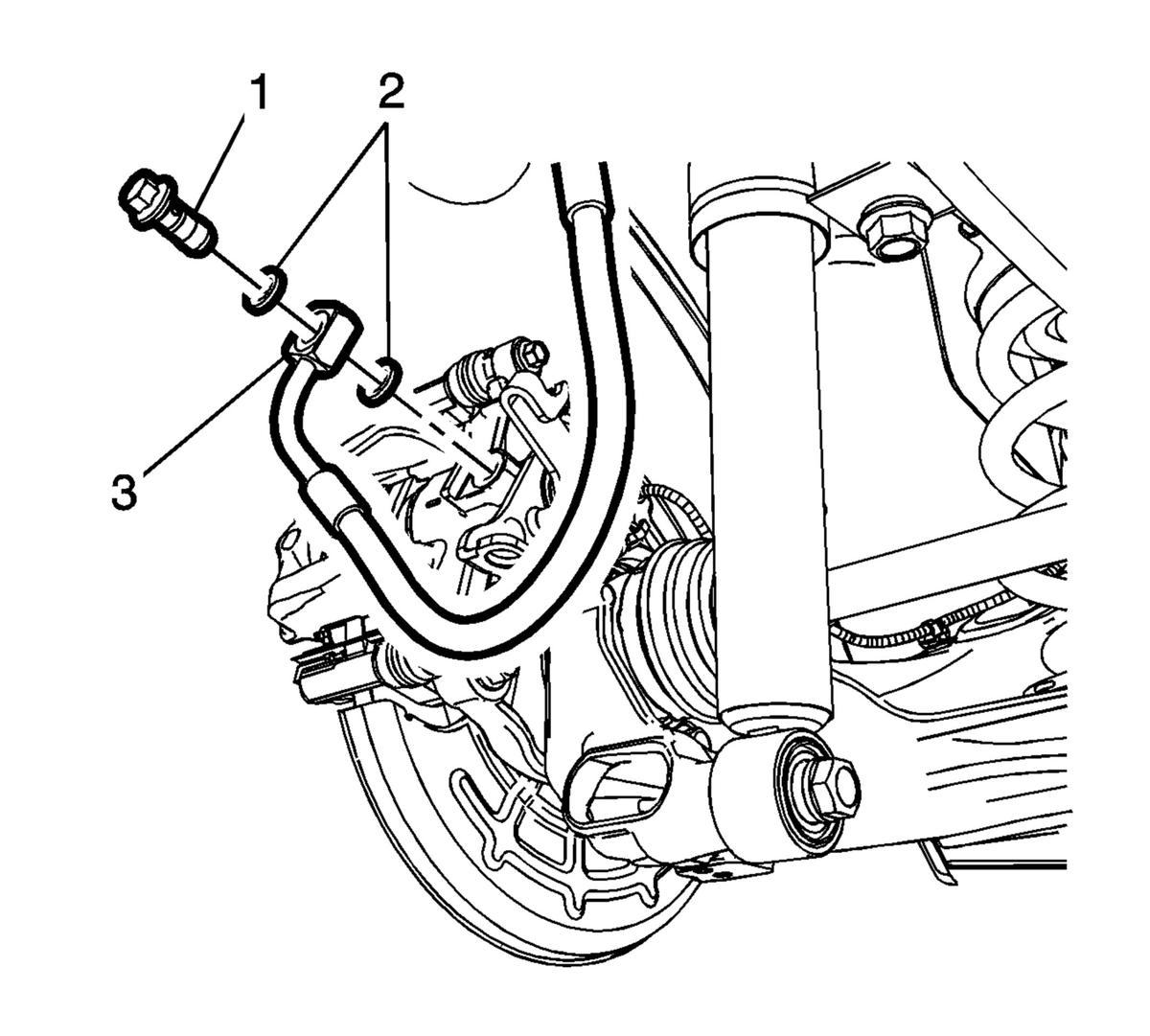

- Assemble the brake hose fitting bolt (1) and the new brake hose fitting gaskets (2) to the brake hose fitting (3).
- Install the brake hose assembly and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).

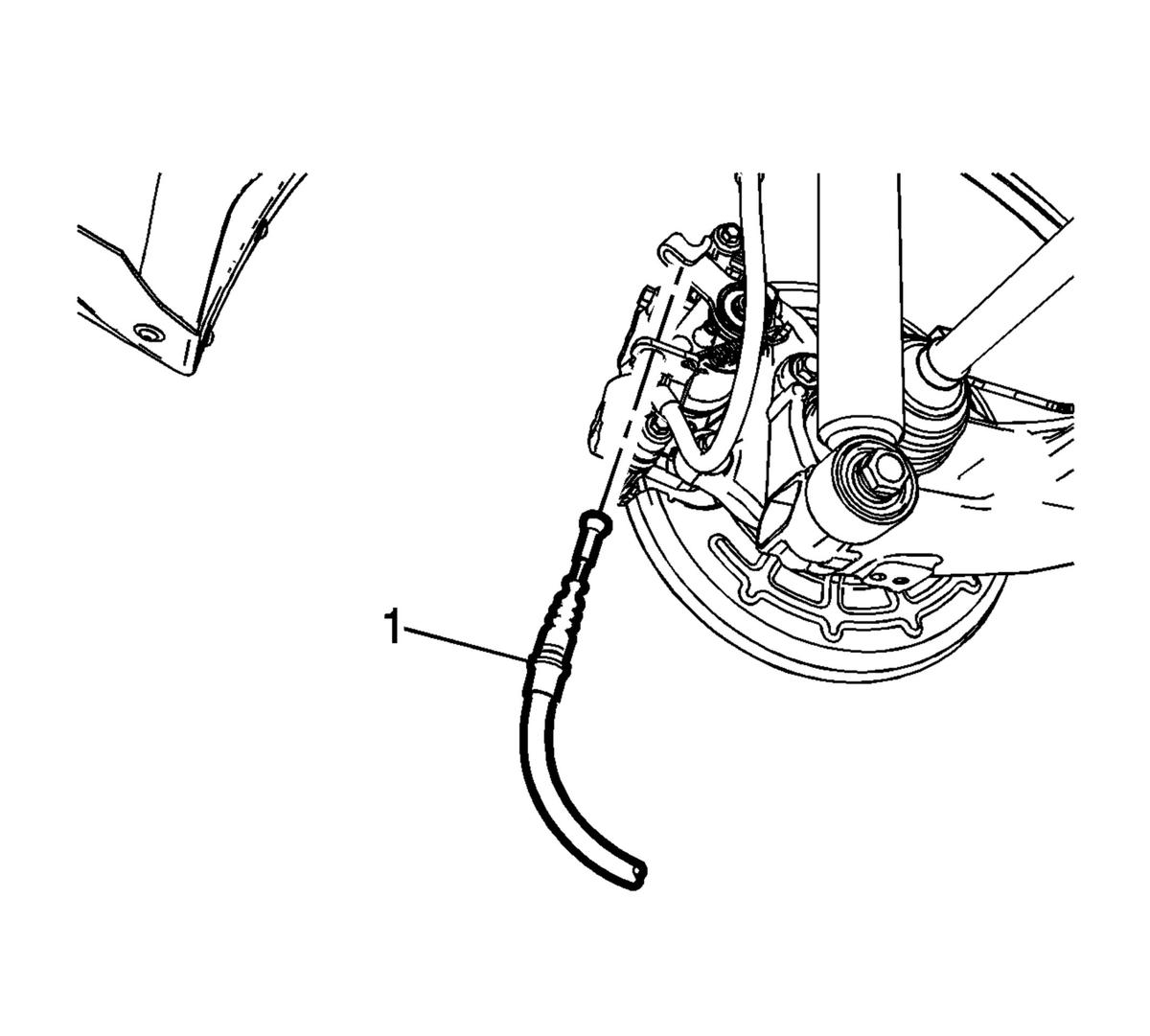

- Install the parking brake cable (1) to the parking brake actuator lever.
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
CAUTION:
Refer to Fastener Caution .
NOTE:
Install new brake hose fitting gaskets.
