Trax LS, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System WIring Schematics (Encore)
›
Power, Ground, Data Communications and Subsystem References (1 of 4)
Power, Ground, Data Communications and Subsystem References (1 of 4)

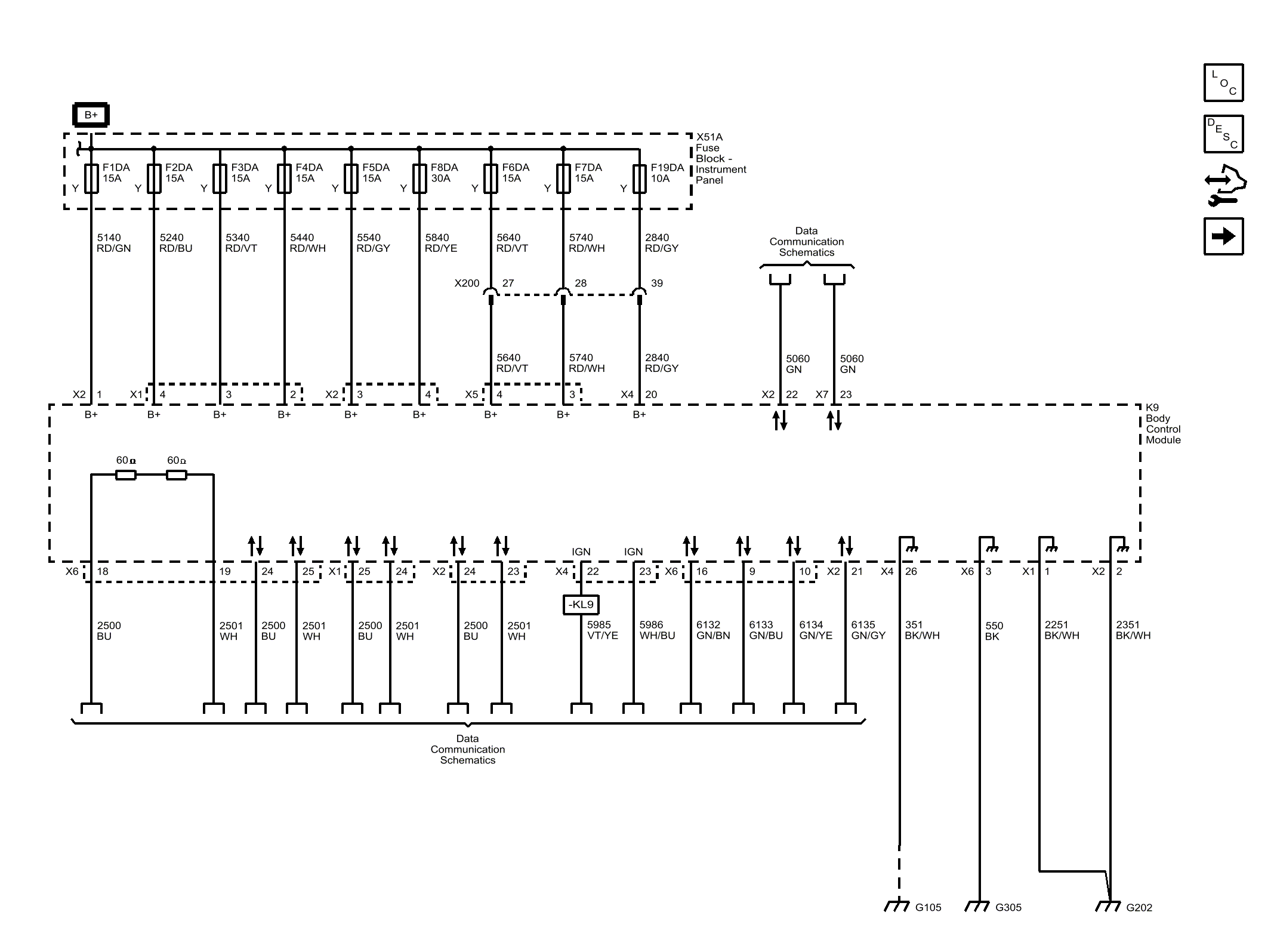

Fig 1: Power, Ground, Data Communications and Subsystem References (1 of 4)
