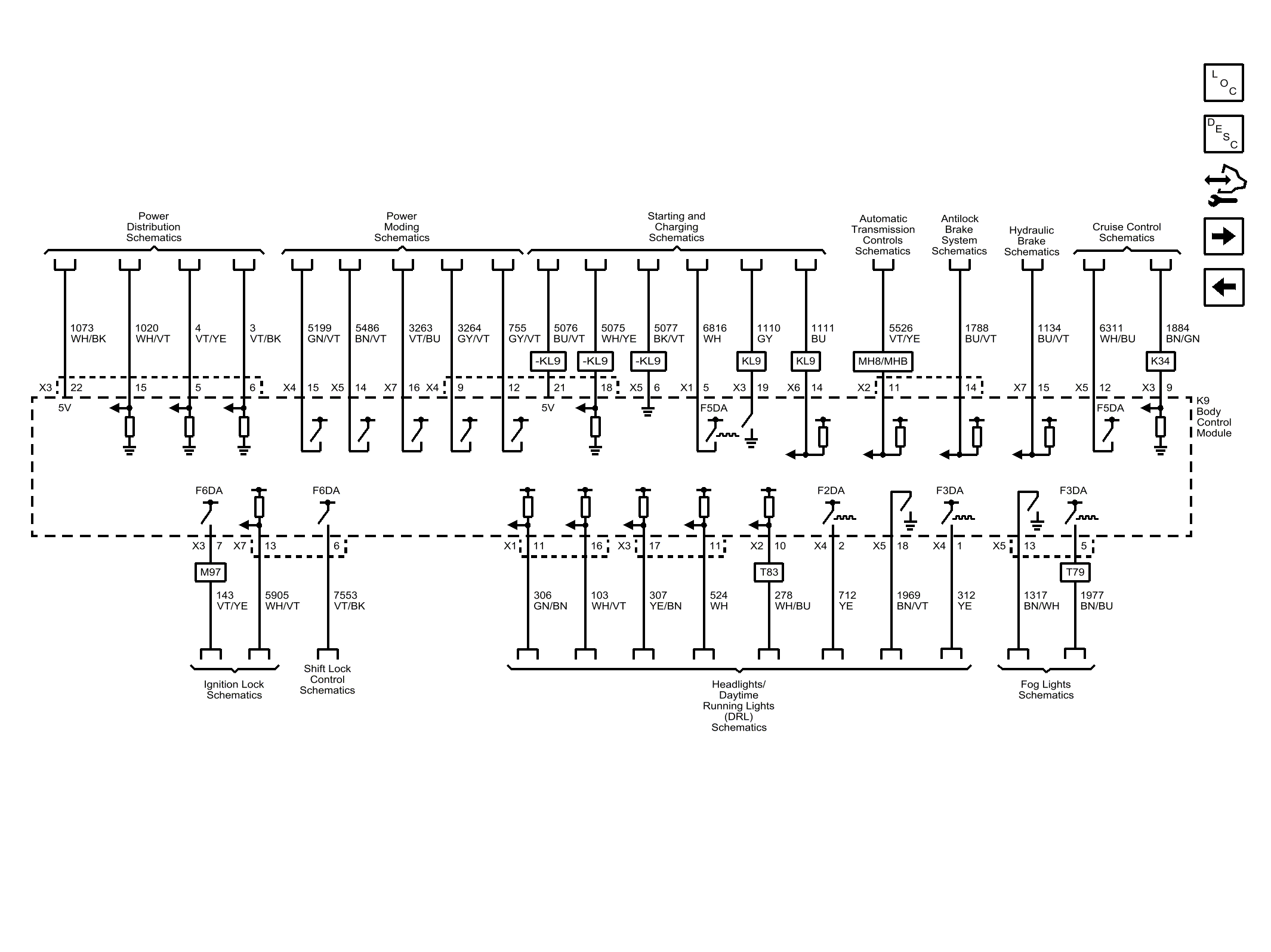

Home › Chevrolet › 2014 › Trax LS, Standard Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System WIring Schematics (Encore) › Subsystem References (2 of 4)
