Section 53 (Object Detection System And Pedestrian Protection System)
›
Schematic and Routing Diagrams
›
Object Detection Schematics
›
Front Sensors
Front Sensors
WARNING:
This page is about a different car, the 2013 Chevrolet Trax and 2013 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

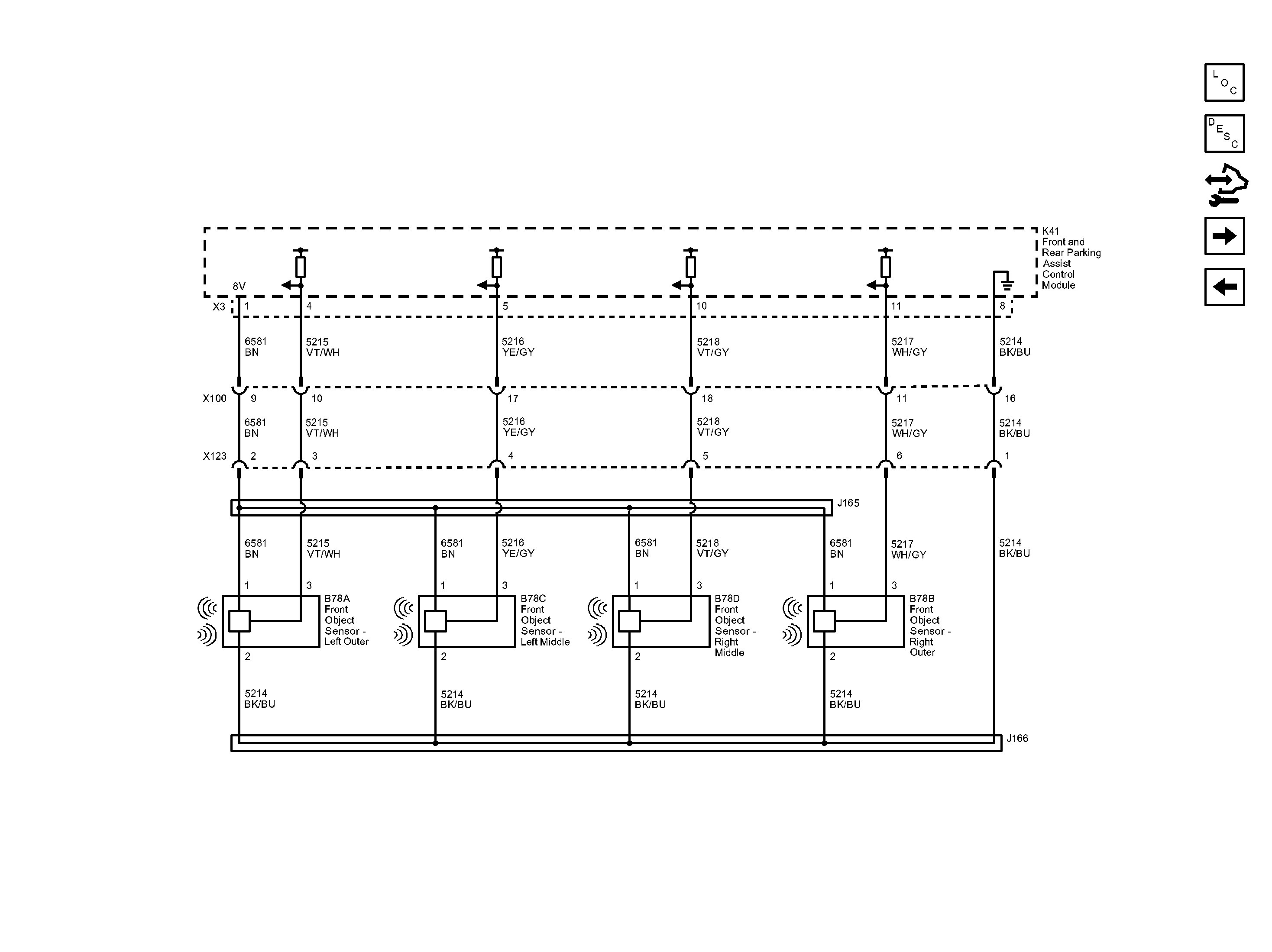

Fig 1: Front Sensors Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
