Linear Interconnect Network (LIN)

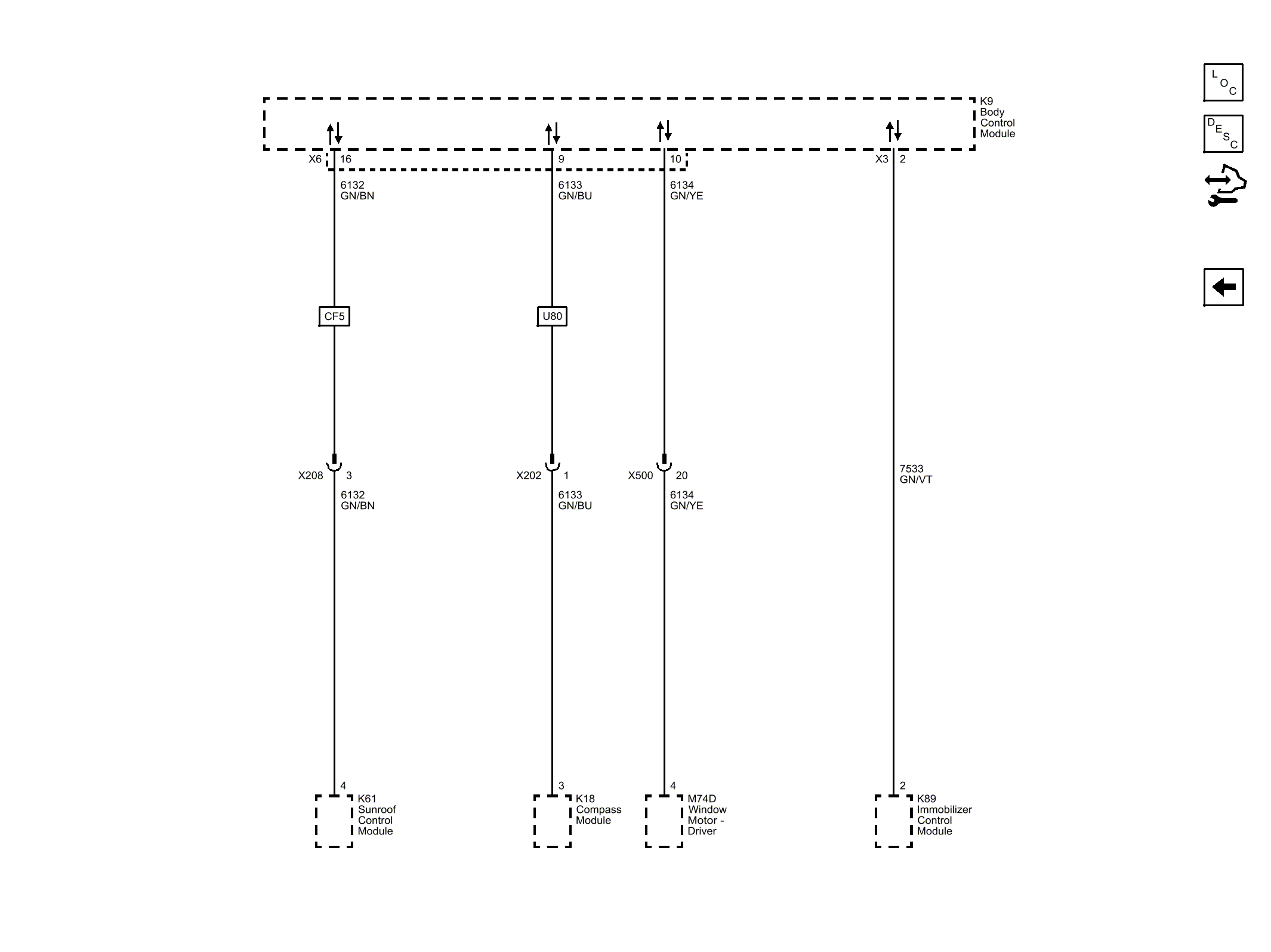

Fig 1: Linear Interconnect Network (LIN)
GM3631324Courtesy of GENERAL MOTORS COMPANY
