Defogger Wiring Schematics: Defogger

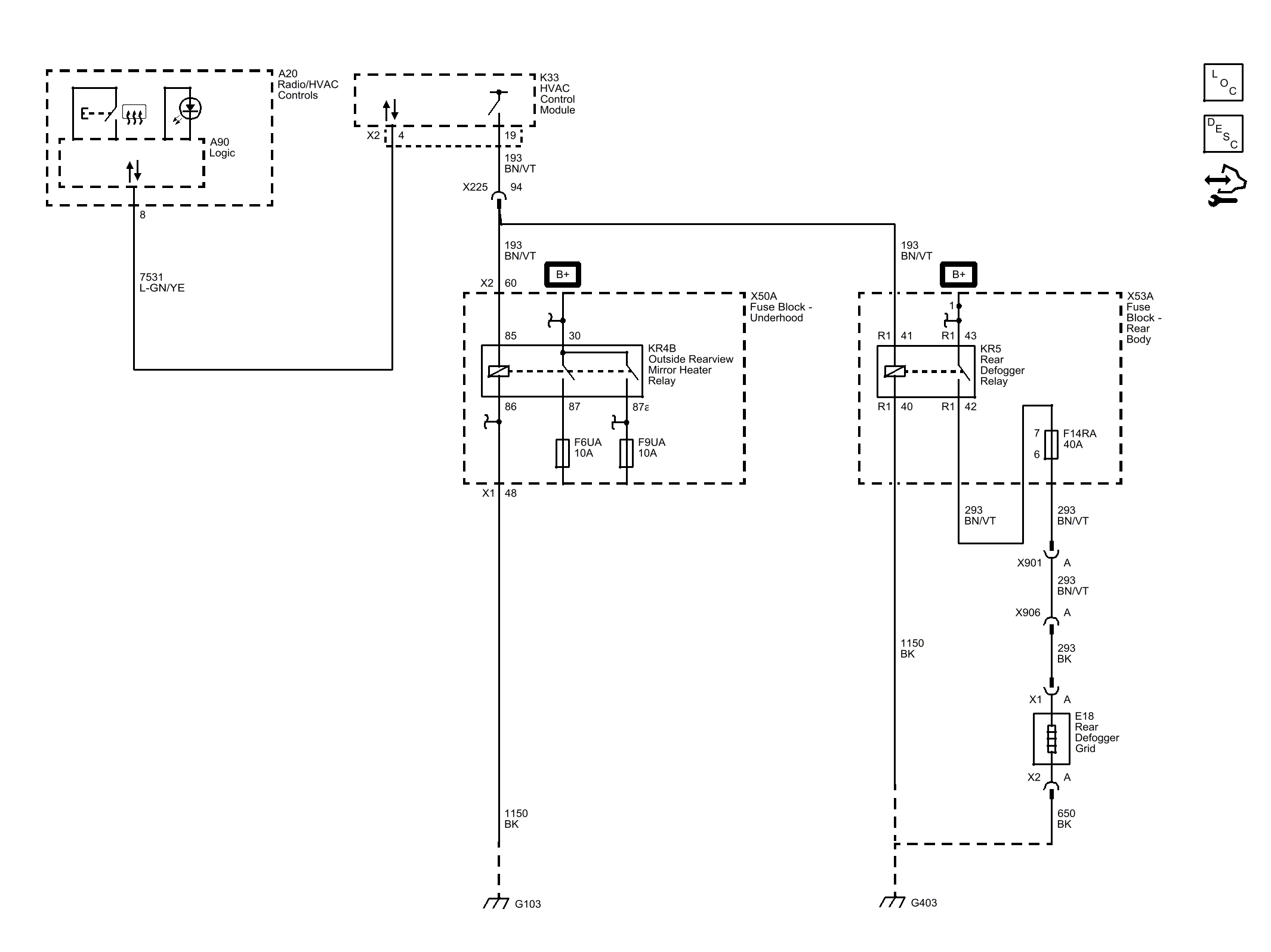

Fig 1: Defogger Wiring Schematics
GM3339773Courtesy of GENERAL MOTORS COMPANY
