Steering Column Lower Trim Cover Replacement
Steering Column Lower Trim Cover Replacement

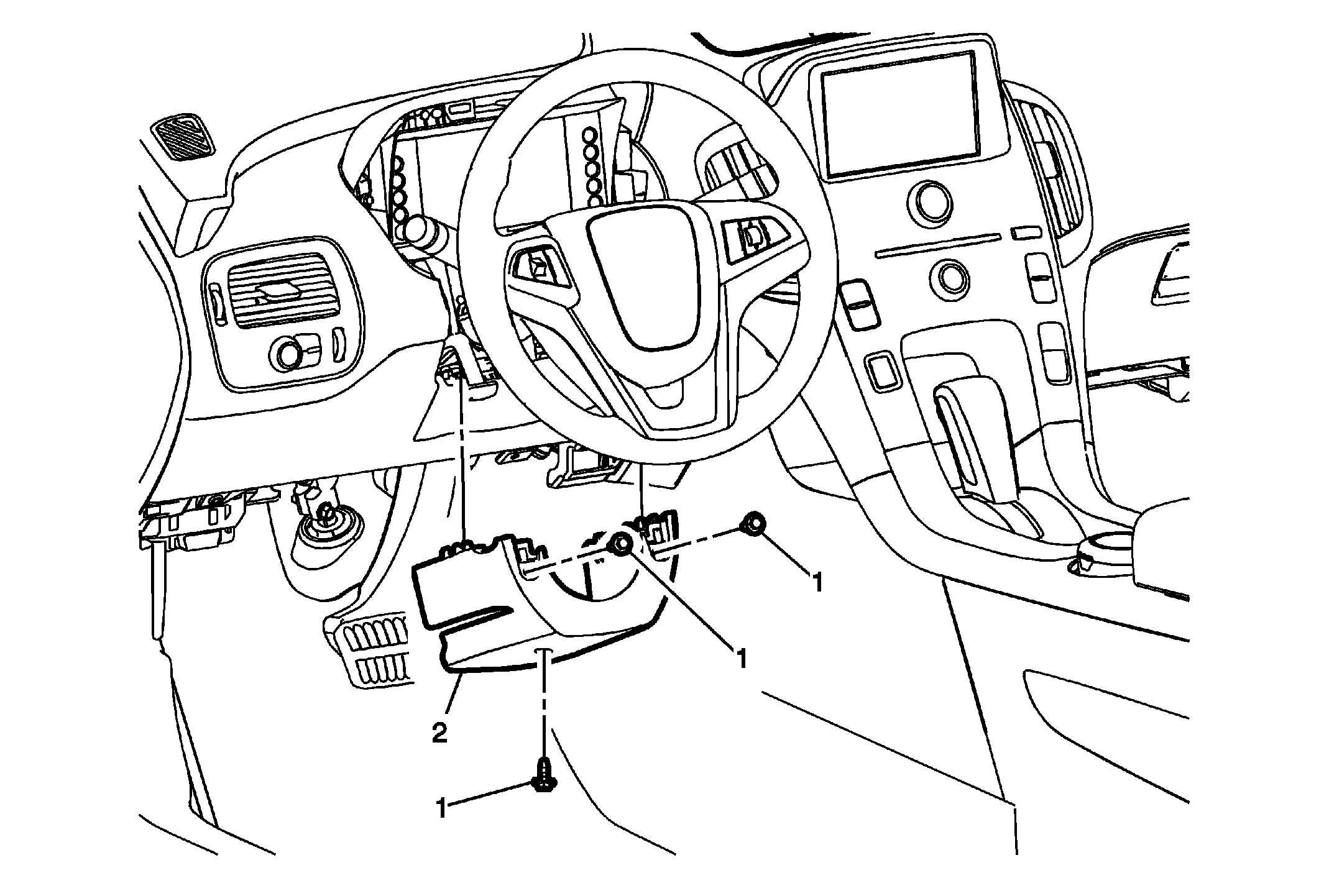

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel cluster trim plate and steering column upper trim cover assembly. Refer to Steering Column Upper Trim Cover Replacement . |
|
| 1 | Steering Column Lower Trim Cover Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Procedure Turn the steering wheel right or left enough to access the fasteners. |
| 2 | Steering Column Lower Trim Cover |
