Right Back Side of the Instrument Panel Components

Right Back Side of the Instrument Panel Components

Items
1:R6B Terminating Resistor - Mid Speed Bus (UPH) R6B Terminating Resistor - Mid Speed Bus (UPH)

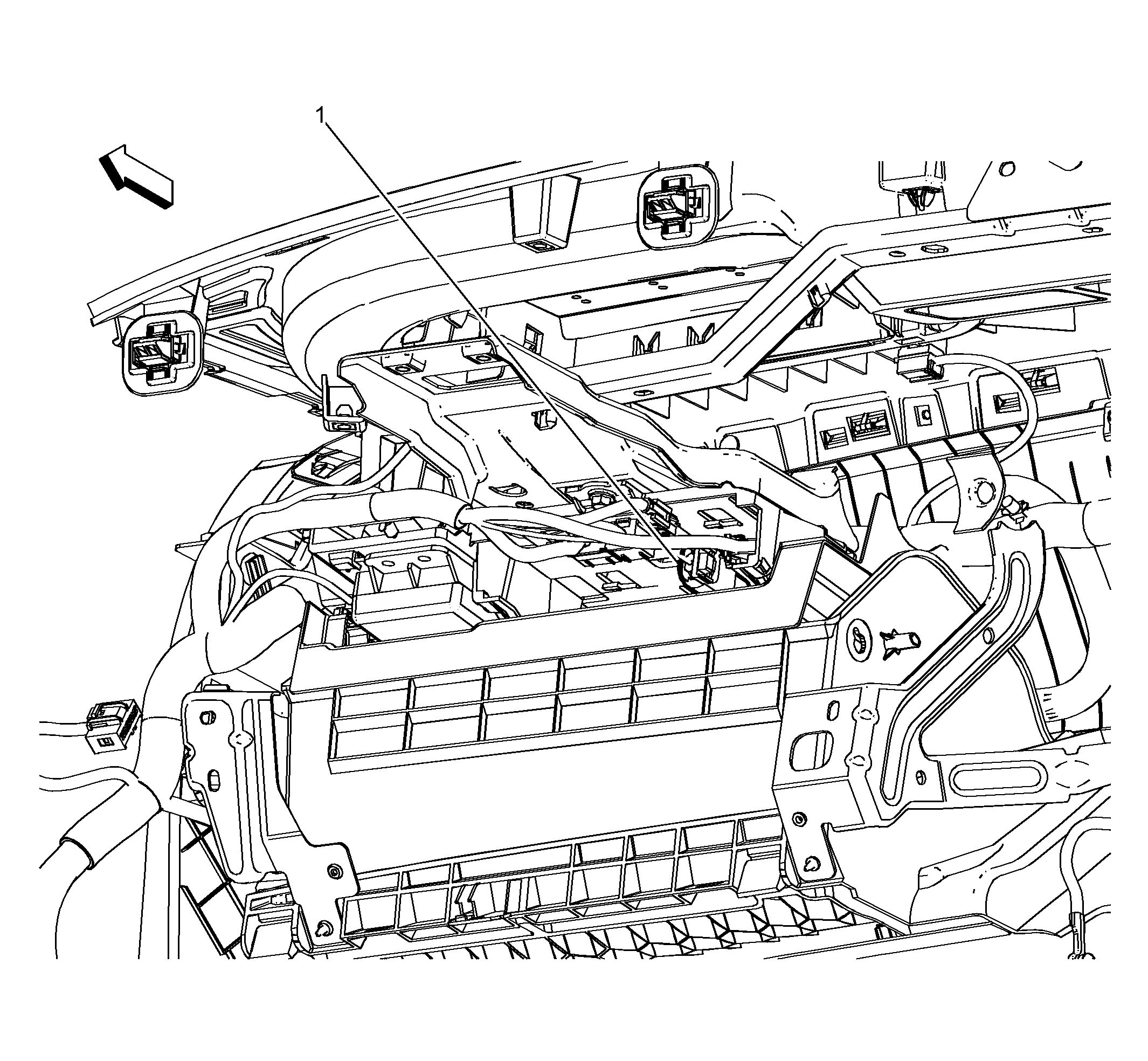

Fig 1: Right Back Side of the Instrument Panel Components
GM2535677Courtesy of GENERAL MOTORS COMPANY
