Power Steering Pump Pulley Replacement

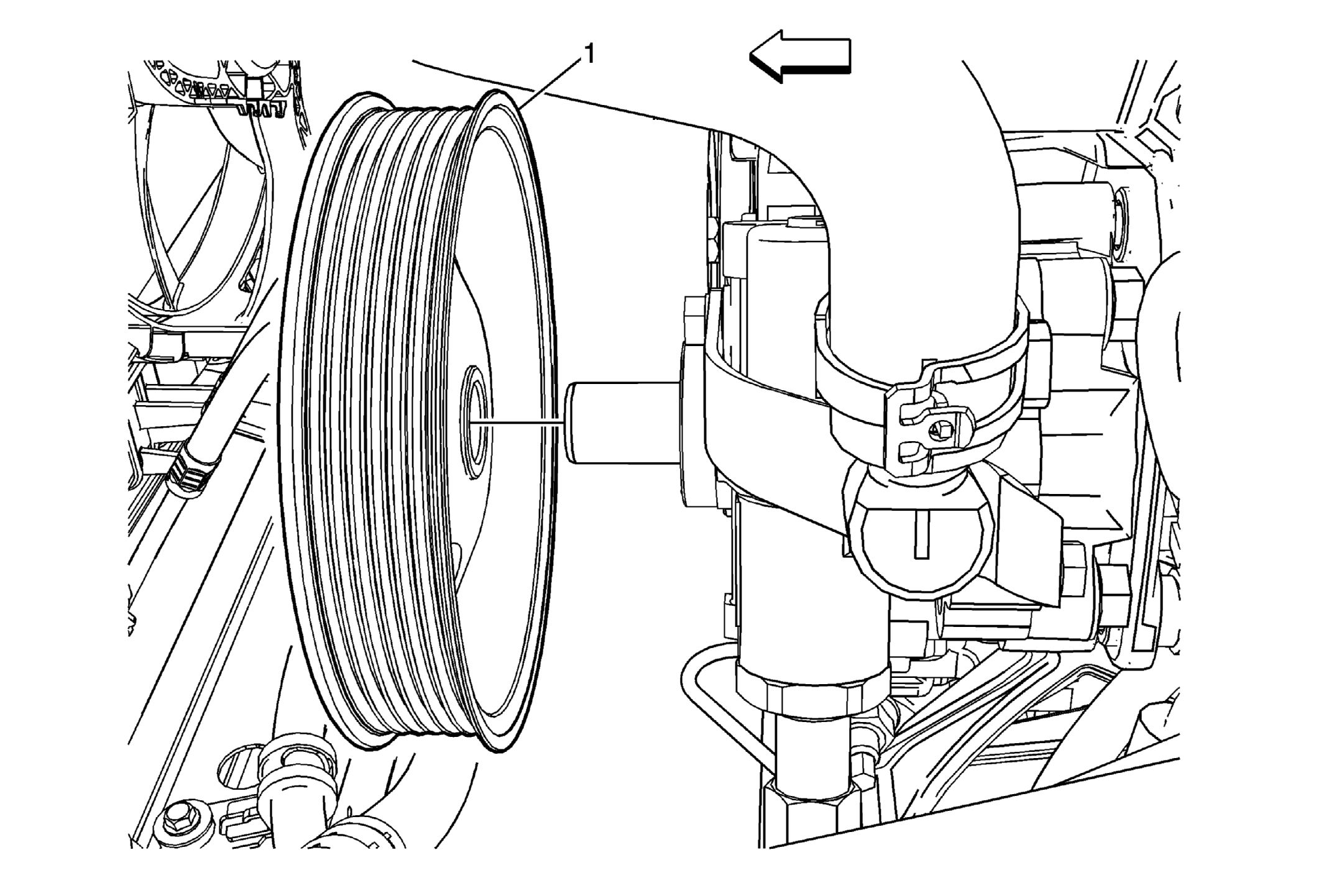

Fig 1: Power Steering Pump Pulley

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the accessory drive belt from the power steering pump pulley only. Refer to Drive Belt Replacement .
1	Power Steering Pump Pulley Procedure Use the J-25034-C Pulley Remover in order to remove the pulley. Use the J-25033-C Pulley Installer in order to install the pulley. TIP: Ensure the axial tolerance of the pulley on the pump shaft is within 0.25 mm (0.010 in). Special Tools J-25034-C Pulley Remover J-25033-C Pulley Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Remove the accessory drive belt from the power steering pump pulley only. Refer to Drive Belt Replacement .

Power Steering Pump Pulley

Procedure

TIP: Ensure the axial tolerance of the pulley on the pump shaft is within 0.25 mm (0.010 in).

Special Tools

For equivalent regional tools, refer to Special Tools .
