Rear Seat Belt Intermediate Guide Replacement (Convertible)

Procedure

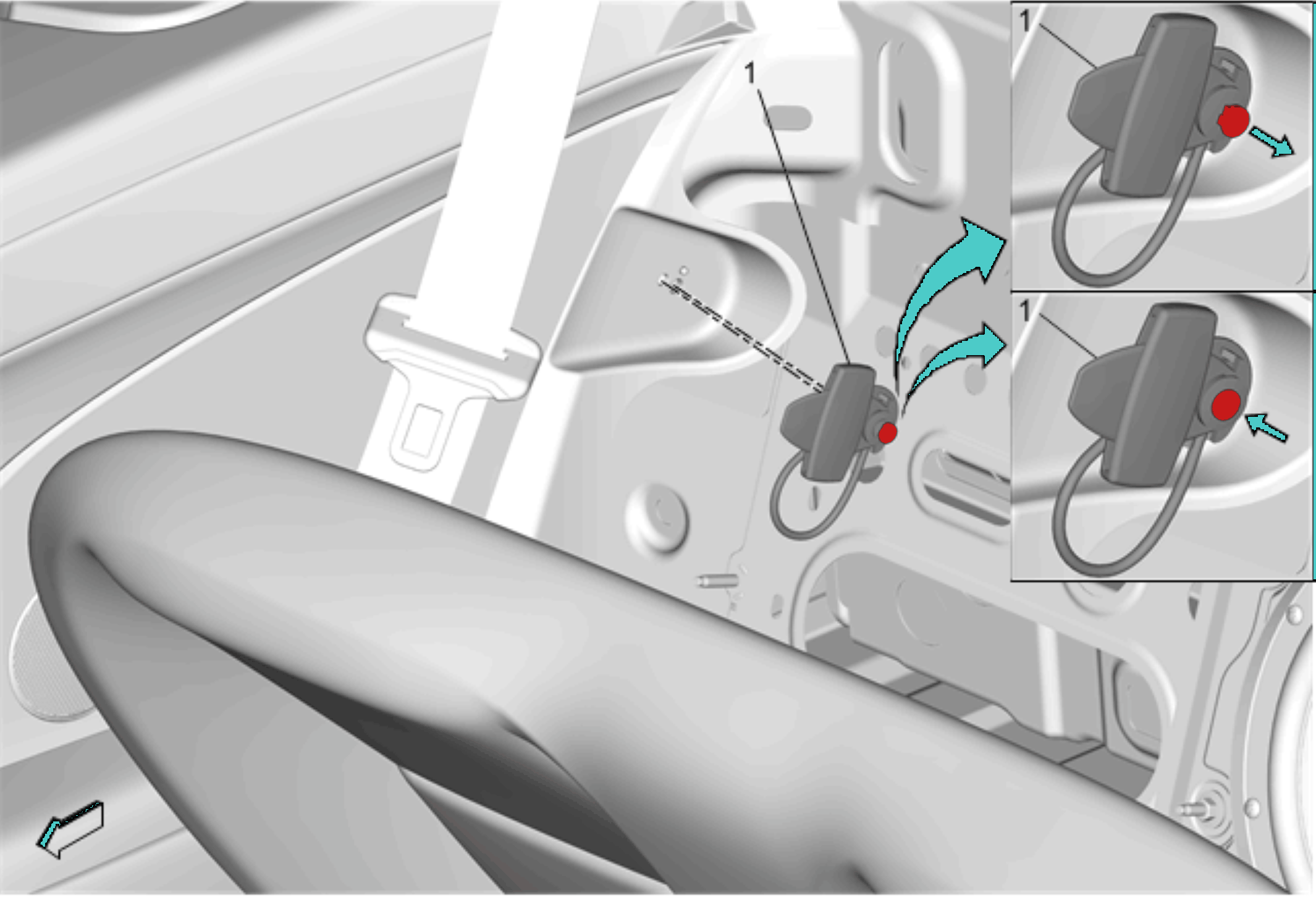

1. To install the guide, align the push-pin with the hole in the garnish - make sure the push pin plunger is in the retracted position.
2. Push the beak of the push-pin into the hole until the guide is flush with the surface of the garnish.
3. Push the plunger of the pushpin in until flush to secure the guide in the hole.
