Module Power, Ground, Serial Data, and Subsystem References (1 of 3)

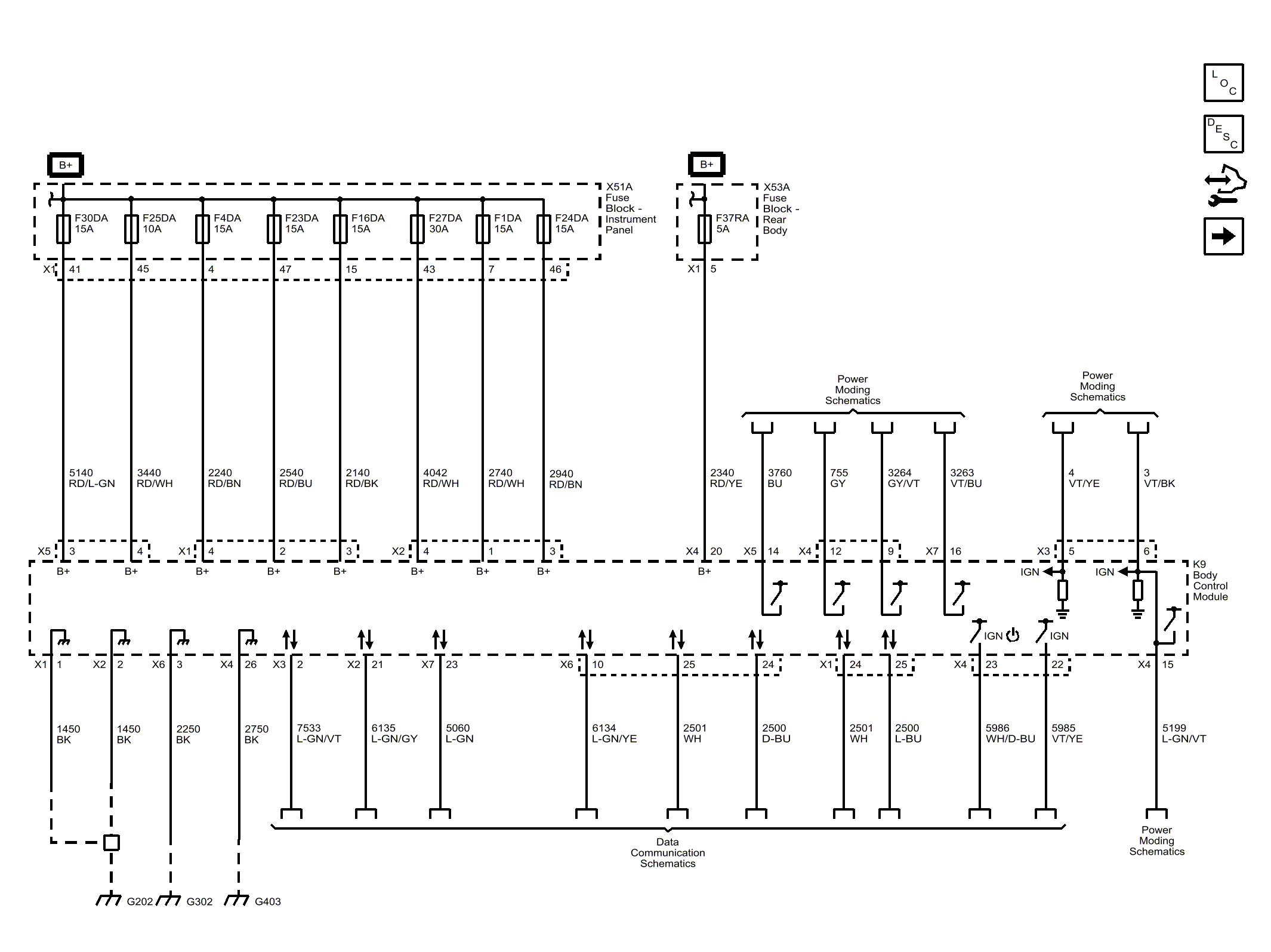

Fig 1: Module Power, Ground, Serial Data, and Subsystem References (1 of 3)
GM3844490Courtesy of GENERAL MOTORS COMPANY
