Heated Oxygen Sensor Replacement - Sensor 1

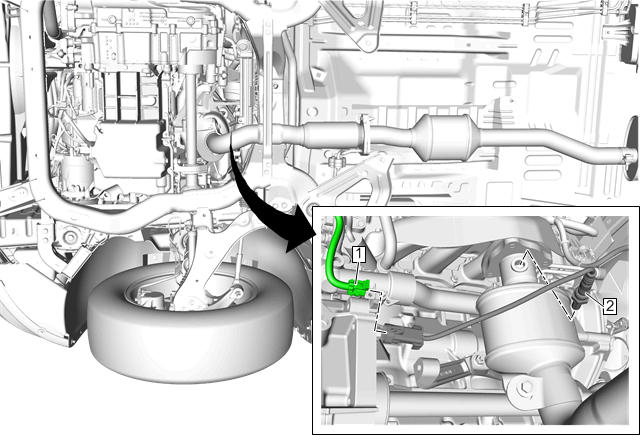

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Electrical Connector |
| 2 | Heated Oxygen Sensor
CAUTION:
Refer to Heated Oxygen and Oxygen Sensor Caution .
CAUTION:
Refer to Heated Oxygen Sensor Resistance Learn Reset Caution .
CAUTION:
Refer to Silicon Contamination of Heated Oxygen Sensors Caution .
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers Tighten 42 N.m (31 lb ft) |
