Power, Ground, and Data Communications

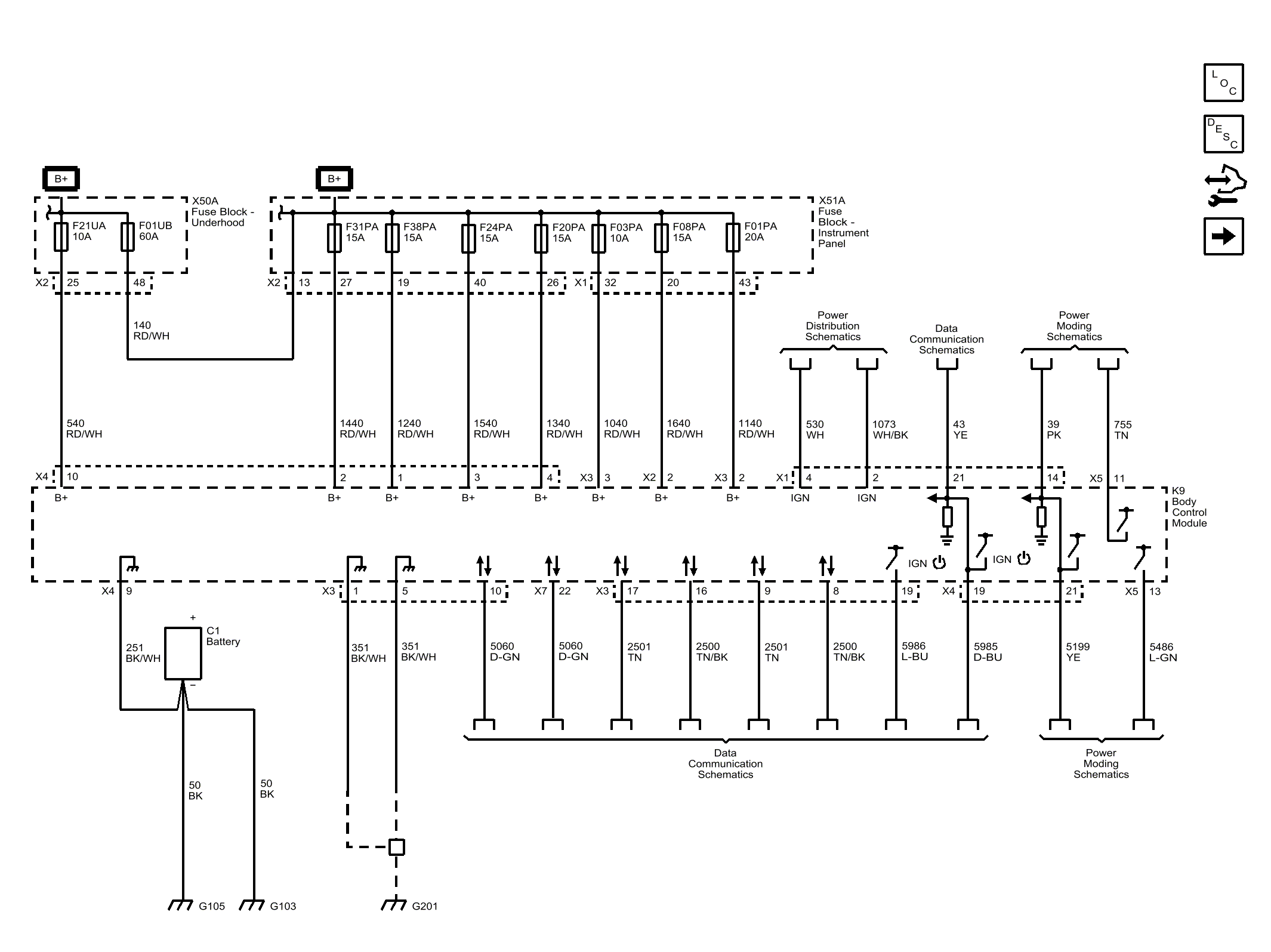

Fig 1: Power, Ground, and Data Communications
GM3763580Courtesy of GENERAL MOTORS COMPANY
