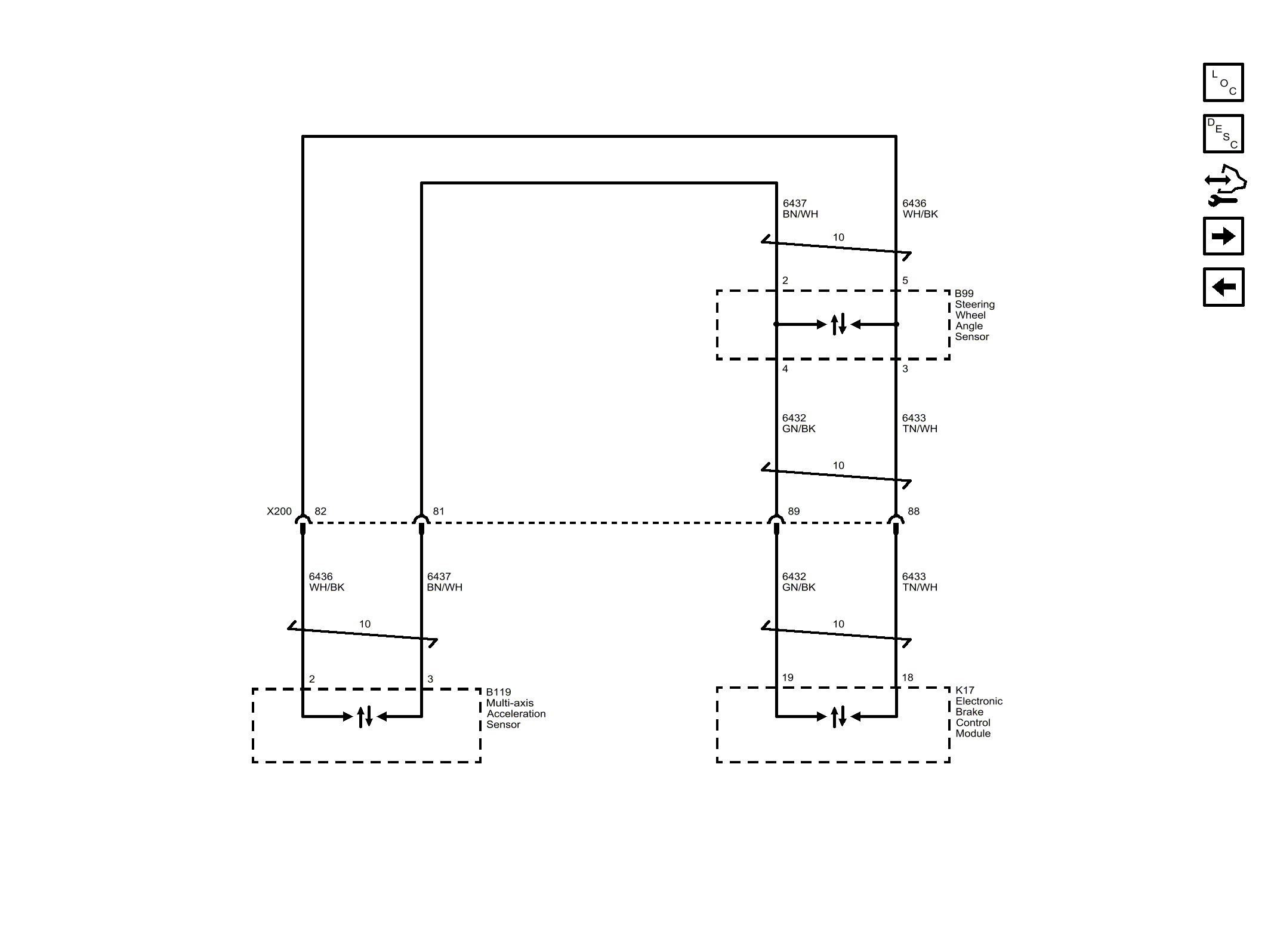

Home › Chevrolet › 2015 › Captiva Sport LS › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Chassis Expansion Bus
