Lower Left Side of Instrument Panel Components

Lower Left Side of Instrument Panel Components

Items
1: B119 Multi-axis Acceleration Sensor B119 Multi-axis Acceleration Sensor
2: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
3: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

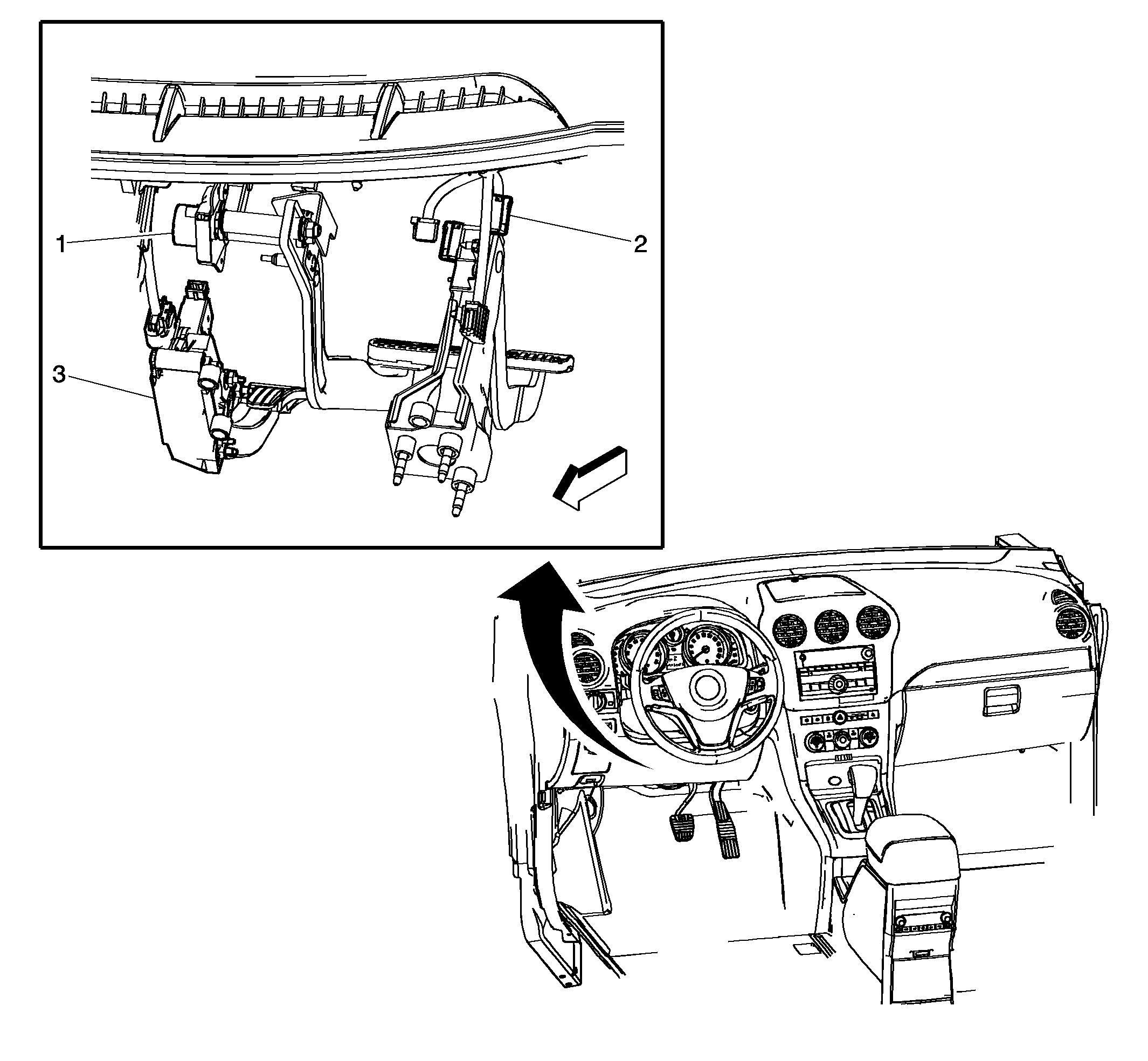

Fig 1: Lower Left Side of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
