X51A Fuse Block - Instrument Panel Label

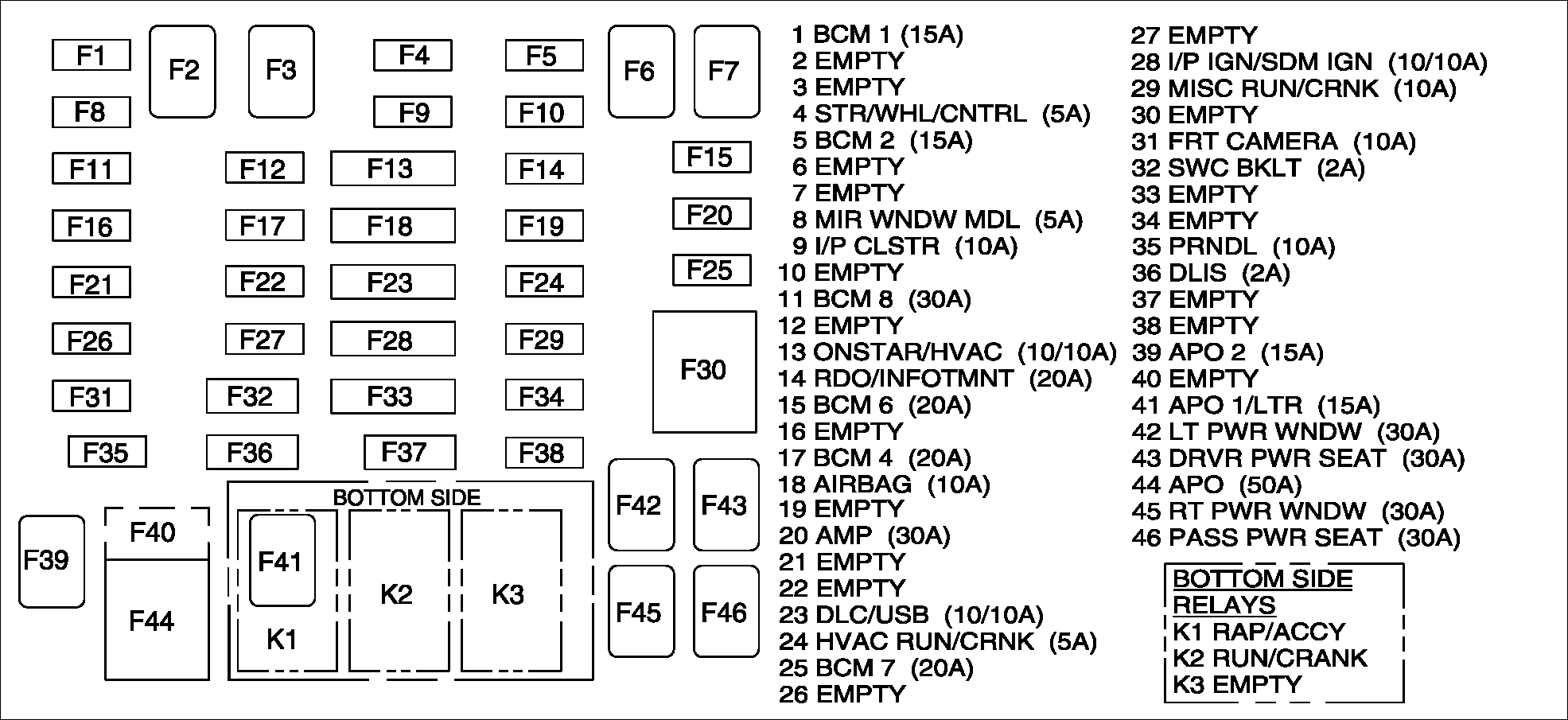

Fig 1: X51A Fuse Block - Instrument Panel Label
GM3818748Courtesy of GENERAL MOTORS COMPANY
