Power, Ground, and Data Communications

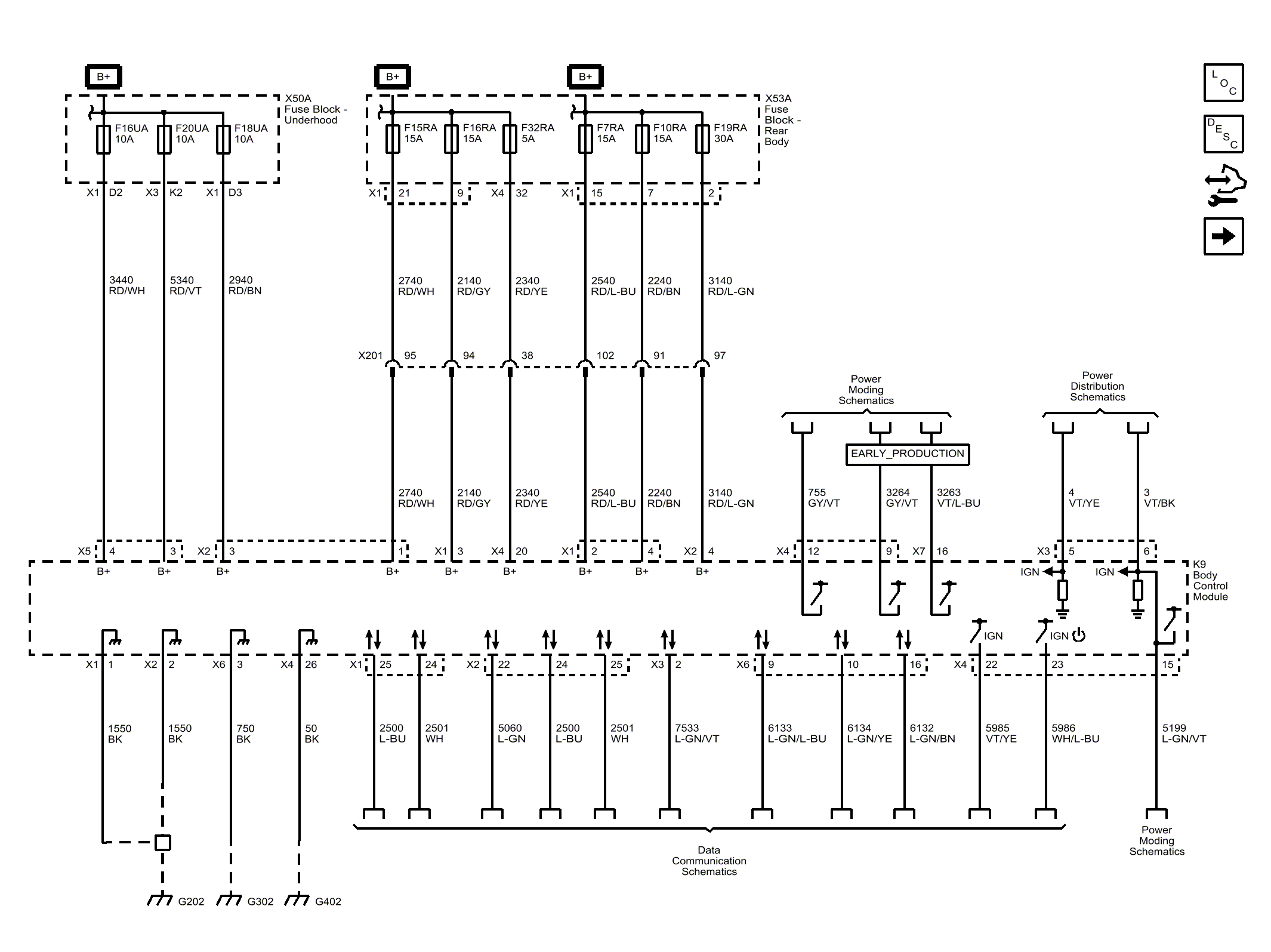

Fig 1: Power, Ground, and Data Communications Wiring Schematic
GM3823556Courtesy of GENERAL MOTORS COMPANY
