Keyless Entry - Keyless Entry Control Module

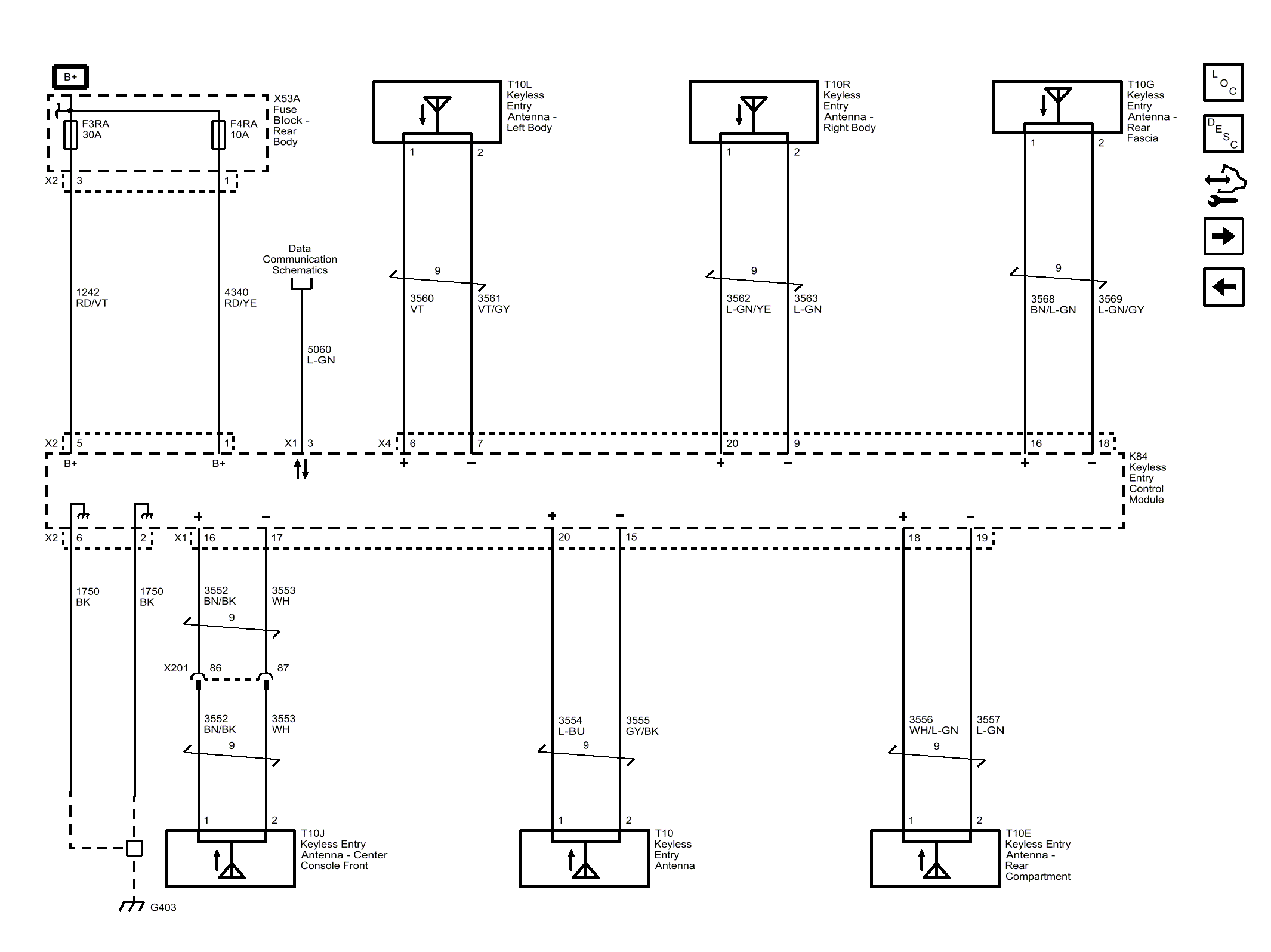

Fig 1: Keyless Entry - Keyless Entry Control Module
GM3823504Courtesy of GENERAL MOTORS COMPANY
