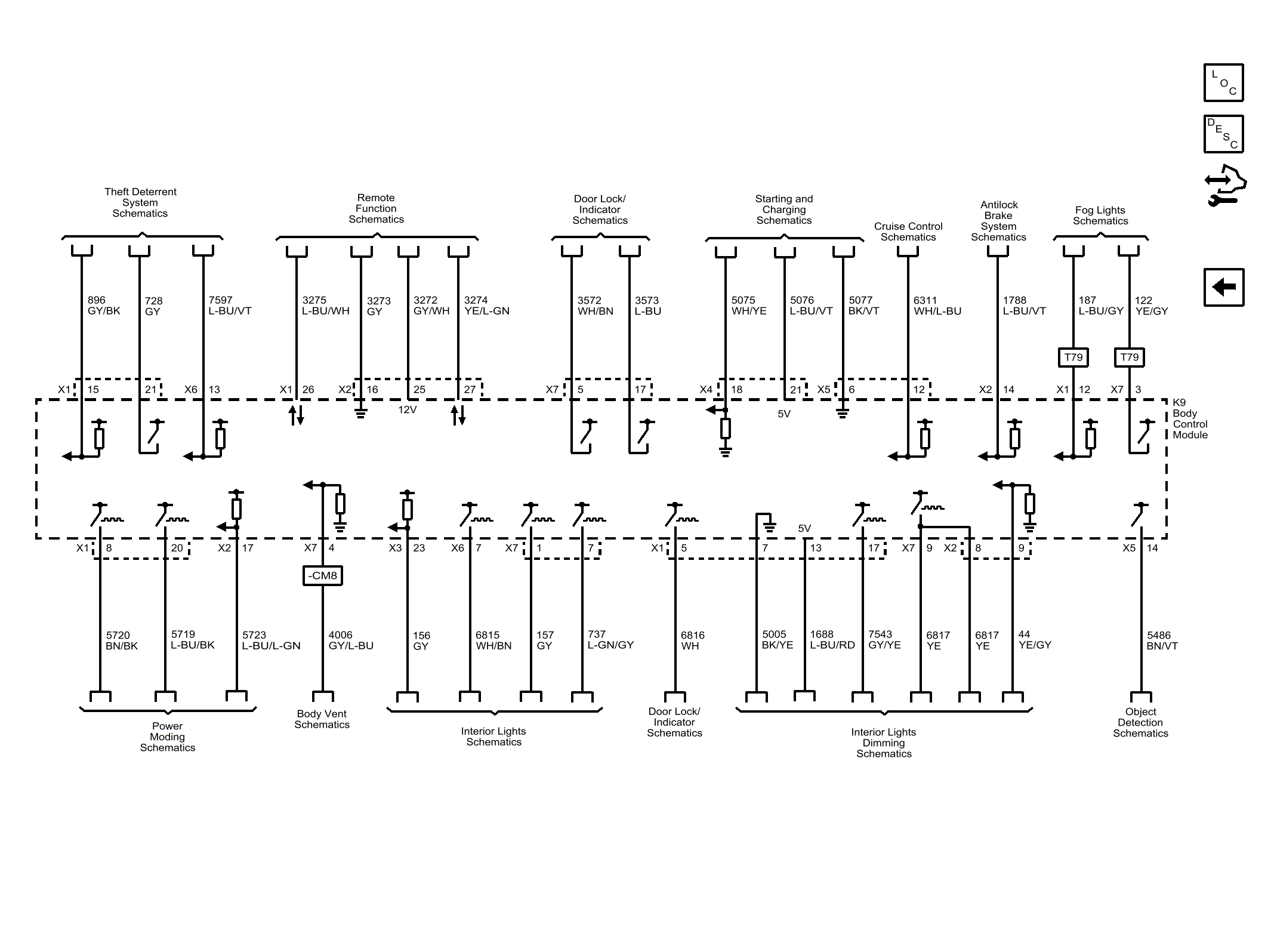

Home › Chevrolet › 2015 › Corvette Z06, 2D Convertible, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Schematics › Subsystem References (3 of 3)
