MOST Bus and Communications Enable

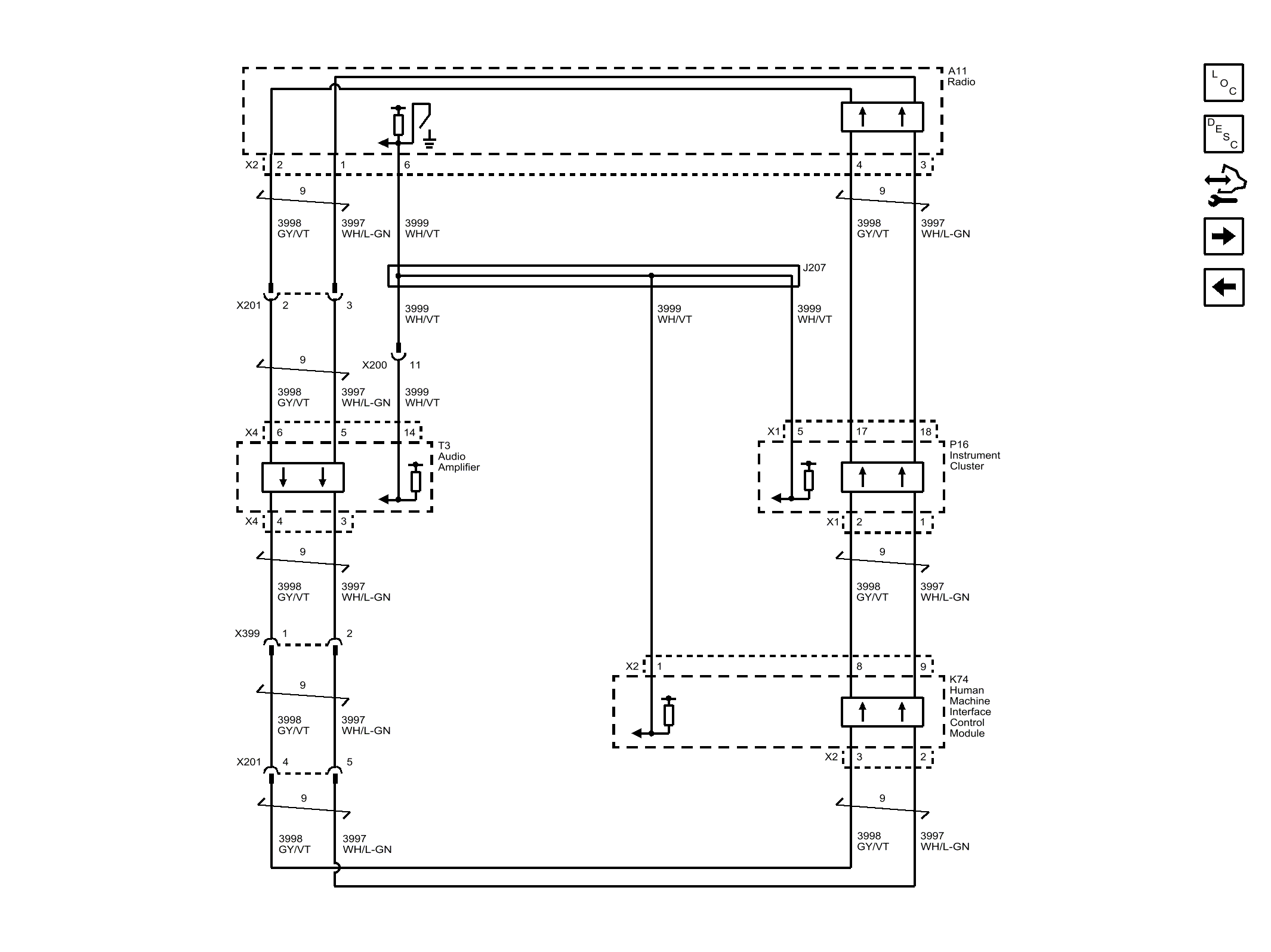

Fig 1: MOST Bus And Communications Enable Wiring Diagram
GM3823325Courtesy of GENERAL MOTORS COMPANY
